SMCJ22CA-13-F TVS Diode by Diodes Incorporated

The SMCJ22CA-13-F is a robust transient voltage suppression (TVS) diode designed by Diodes Incorporated to protect sensitive electronic equipment from voltage spikes and transients. This TVS diode is specifically engineered to shield circuits against the detrimental effects of voltage transients induced by inductive load switching and lightning, particularly in applications where space and power density are critical considerations.

Featuring a bidirectional configuration, the SMCJ22CA-13-F is capable of clamping both positive and negative voltage transients. The device operates with a stand-off voltage of 22 volts, making it suitable for a broad range of applications, including power supplies, communication systems, and other electronic devices that require reliable transient voltage protection.

Key Features:

• Transient Protection: The SMCJ22CA-13-F provides excellent transient voltage suppression with a peak pulse power dissipation of 1500 Watts for a 10/1000μs waveform. This ensures that devices are safeguarded from sudden surges in power.
• Low Leakage Current: With its low leakage current, this TVS diode ensures minimal power loss, making it ideal for energy-sensitive designs.

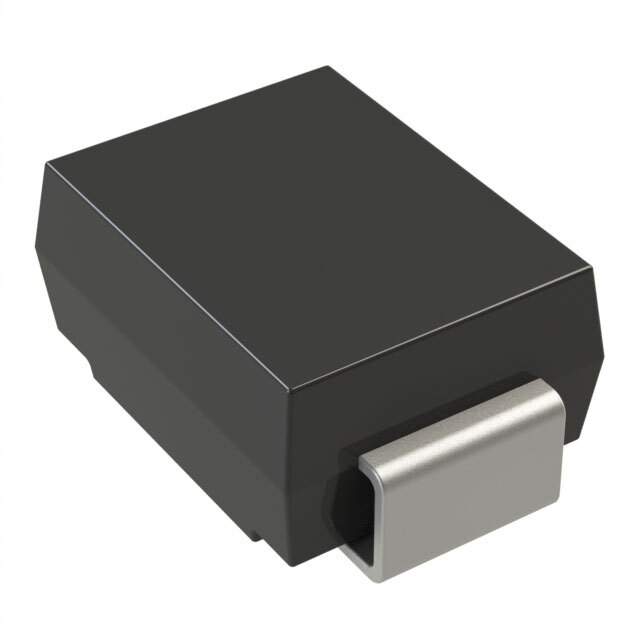

• Surface Mount Package: The diode comes in a DO-214AB (SMC) package, which is optimized for automated surface mount assembly and is known for its compact footprint and low profile.
• Environmental Compliance: The SMCJ22CA-13-F is compliant with RoHS and REACH standards, ensuring that it meets the environmental and safety regulations for electronic components.
• High Temperature Stability: This device can operate over a wide temperature range, maintaining its performance and reliability even under extreme conditions.

The SMCJ22CA-13-F's combination of features makes it an excellent choice for protecting sensitive circuitry in a variety of industrial, commercial, and consumer applications. Its ability to quickly clamp high voltage transients and return to its low leakage state after the event makes it a valuable component for maintaining the longevity and reliability of electronic systems.

With Diodes Incorporated's commitment to quality, the SMCJ22CA-13-F is a TVS diode that designers and engineers can trust to provide consistent and reliable protection against voltage transients in their electronic designs.
