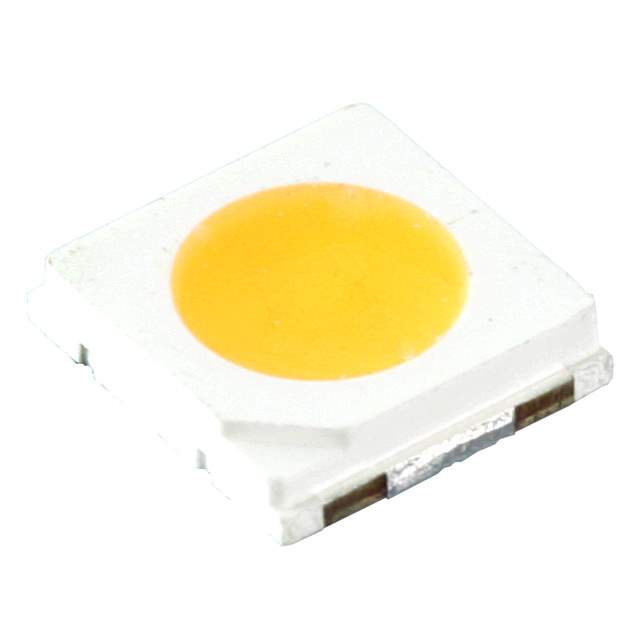

MXA8-PW40-0000 Real Image
Same model may have multiple batches, images only for reference.

MXA8-PW40-0000

Part No MXA8-PW40-0000
Manufacturer Lumileds
Catalog LED Lighting - White
Description High efficacy up to 165 lm/W at 60 Compact 3535 form factor
Datasheet
MXA8-PW40-0000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Lumileds
Series LUXEON 3535L
Packaging Reel - TR
Color White, Neutral
CCT (K) 4000K
Flux @ 25°C, Current - Test 42 lm (Typ)
Current - Test 100mA
Voltage - Forward (Vf) (Typ) 3.05V
Lumens/Watt @ Current - Test 138 lm/W
CRI (Color Rendering Index) 80
Current - Max 200mA
Viewing Angle 115°
Mounting SMD
Package 1414 (3535 Metric)
Manufacturer Package 3535
Size 0.138" L x 0.134" W (3.50mm x 3.40mm)
Height - Seated (Maximum) 0.032" (0.80mm)
Thermal Resistance of Package 18°C/W
Win Source Part Number 1229098-MXA8-PW40-0000
Manufacturer Homepage www.luxeon.com
Popularity Medium
Supply and Demand Status Limited
Family Name MXA8-PW40-0000
Introduction Date March 02, 2013
ECCN EAR99
Country of Origin Malaysia
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian MXA8-PW40-0000 CAD Model

Description

The Lumileds MXA8-PW40-0000 is a white, neutral color LED from the LUXEON 3535L series.

  • LED Color: White, Neutral
  • Series: LUXEON 3535L
  • Package: 1414 (3535 Metric)
  • Mounting: SMD
  • Maximum Current: 200mA
  • Viewing Angle: 115°
  • Voltage Forward: 3.05V
  • Current Test: 100mA
  • Size: 0.138" L x 0.134" W (3.50mm x 3.40mm)
  • CCT: 4000K
  • Flux @ 25°C, Current - Test: 42 lm (Typ)
  • Lumens/Watt @ Current - Test: 138 lm/W
  • CRI: 80
  • Thermal Resistance: 18°C/W
  • Supply and Demand Status: Limited
