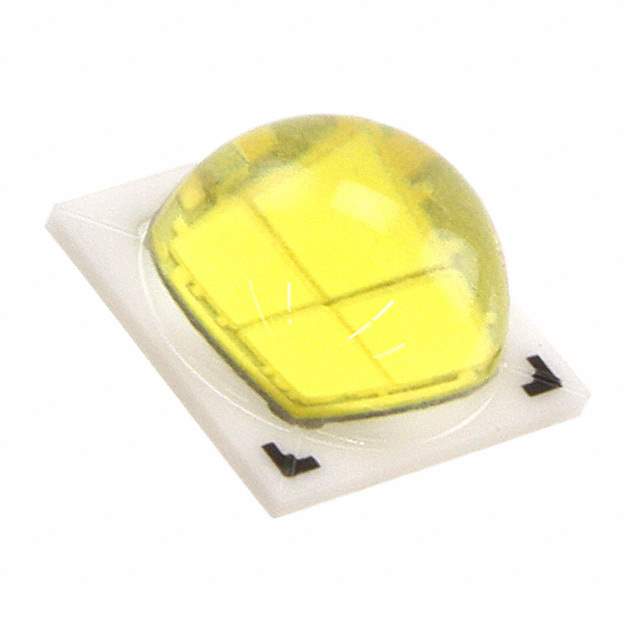

LXR7-SW65 Real Image
Same model may have multiple batches, images only for reference.

LXR7-SW65

Part No LXR7-SW65
Manufacturer Lumileds
Catalog LED Lighting - White
Description LED LUXEON COOL WHITE 6500K 2SMD / LED Lighting LUXEON M White, Cool 6500K 11.2V 700mA 120° 2828 (7070 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Manufacturer Lumileds
Packaging Reel - TR
Color White, Cool
CCT (K) 6500K
Flux @ 85°C, Current - Test 1060lm (Typ)
Current - Test 700mA
Voltage - Forward (Vf) (Typ) 11.2V
Lumens/Watt @ Current - Test 135 lm/W
CRI (Color Rendering Index) 70
Current - Max 1.2A
Viewing Angle 120°
Mounting Surface Mount
Case / Package 2828 (7070 Metric)
Size / Dimension 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) 0.152" (3.87mm)
Thermal Resistance of Package 1.25°C/W
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Part Number 1416-1072,1417-1072-ND,1416-1072-ND,1416-1072-6,1416-1072-2,1417-1072,1416-1072-1
Standard Package 500
Win Source Part Number 1331847-LXR7-SW65
Ultra Librarian 3D Model Ultra Librarian LXR7-SW65 CAD Model

Description

The Lumileds 1331847-LXR7-SW65 is a surface mount LED lighting component that emits a cool white light.

  • Viewing Angle: 120 degrees
  • Forward Voltage: 11.2V
  • Package Size: 0.276 inches by 0.276 inches
  • Maximum Seated Height: 0.152 inches
  • Current Max: 1.2A
  • CCT: 6500K
  • Thermal Resistance: 1.25 degrees Celsius per watt
  • CRI: 70
  • Package: 2828 (7070 metric)
  • REACH: Unaffected
  • RoHS3 Compliant: Yes
  • Package: 500
