Same model may have multiple batches, images only for reference.

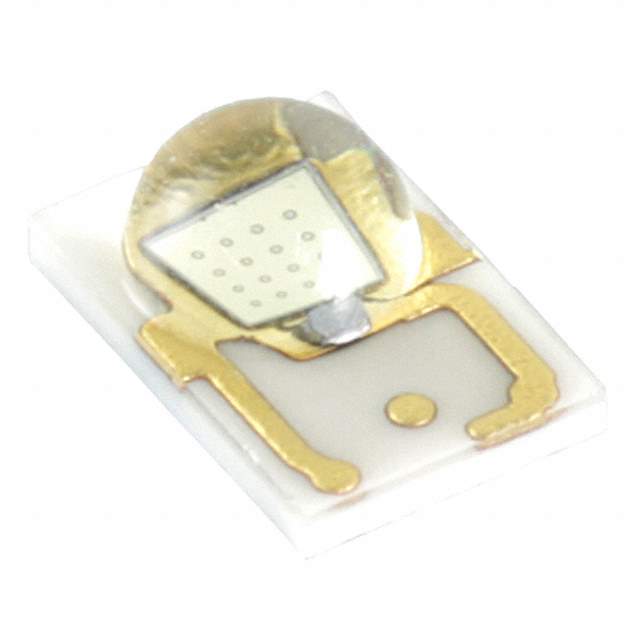

LXML-PM01-0090 Real Image
Same model may have multiple batches, images only for reference.

LXML-PM01-0090

Part No LXML-PM01-0090
Manufacturer Lumileds
Catalog LED Lighting - Color
Description LUXEON Rebel and LUXEON Rebel ES Color Portfolio
Datasheet
LXML-PM01-0090 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Lumileds
Series LUXEON Rebel Color
Packaging Reel - TR
Color Green
Wavelength 530nm (Typ)
Current - Test 350mA
Voltage - Forward (Vf) (Typ) 2.9V
Lumens/Watt @ Current - Test 94 lm/W
Current - Max 1A
Flux @ Current/Temperature - Test 95 lm (Typ)
Temperature - Test 25°C
Viewing Angle 125°
Mounting SMD
Package 1816 (4540 Metric)
Manufacturer Package SMD
Size 0.177" L x 0.120" W (4.49mm x 3.05mm)
Height - Seated (Maximum) 0.083" (2.10mm)
Thermal Resistance of Package 10°C/W
Win Source Part Number 1209791-LXML-PM01-0090
Manufacturer Homepage www.luxeon.com
Popularity Medium
Supply and Demand Status Limited
Family Name LXML-PM01
Introduction Date March 09, 2007
ECCN EAR99
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian LXML-PM01-0090 CAD Model

Description

The Lumileds LUXEON Rebel Color is a high-performance green LED. It is manufactured by Lumileds.

  • Viewing Angle: 125 degrees
  • Forward Voltage: 2.9V
  • Mounting: SMD mounted
  • Maximum Current: 1A
  • Package: 1816 (4540 metric)
  • Thermal Resistance: 10 degrees Celsius per watt
  • Wavelength: 530nm
  • Produces: 95 lumens @ a current of 350mA and a temperature of 25 degrees Celsius
  • Ideal for use in: optoelectronics
