Same model may have multiple batches, images only for reference.

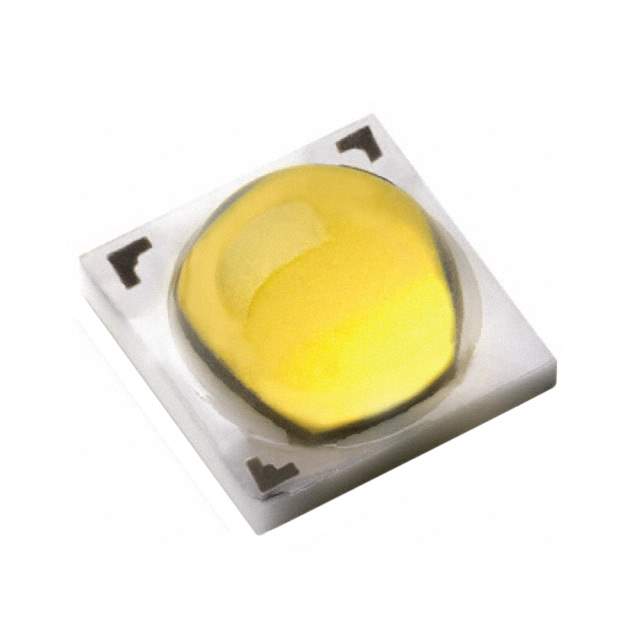

LXH8-FW30-3 Real Image
Same model may have multiple batches, images only for reference.

LXH8-FW30-3

Part No LXH8-FW30-3
Manufacturer Lumileds
Catalog LED Lighting - White
Description LED LUXEON WARM WHITE 3000K 3SMD / LED Lighting series White, Warm 3000K 3-Step MacAdam Ellipse 2.8V 700mA 120° 2-SMD, No Lead Exposed Pad
Datasheet
LXH8-FW30-3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr Lumileds
Series LUXEON T
Package Tape & Reel
Product Status Obsolete
Color White, Warm
CCT (K) 3000K 3-Step MacAdam Ellipse
Flux @ 85°C, Current - Test 197lm (Typ)
Current - Test 700mA
Voltage - Forward (Vf) (Typ) 2.8V
Lumens/Watt @ Current - Test 101 lm/W
CRI (Color Rendering Index) 80
Current - Max 1.2A
Viewing Angle 120°
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead Exposed Pad
Dimension 0.146" L x 0.146" W (3.70mm x 3.70mm)
Height - Seated (Max) 0.083" (2.12mm)
Thermal Resistance of Package 3°C/W
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 1416-1012-2,1417-1012-6,1416-1012-1,1417-1012-6-ND,1417-1012-1,1417-1012-2,1416-1012-6,1417-1012-1-ND,1417-1012-2-ND
Standard Package 1,000
Win Source Part Number 1184922-LXH8-FW30-3
Ultra Librarian 3D Model Ultra Librarian LXH8-FW30-3 CAD Model

Description

The Lumileds LUXEON T 1184922-LXH8-FW30-3 is a white, warm LED lighting component with a viewing angle of 120°.

  • Color: White, Warm
  • Viewing Angle: 120°
  • Forward Voltage (Vf): 2.8V
  • Current - Max: 1.2A
  • CCT (K): 3000K
  • Flux @ 85°C, Current - Test: 197lm (Typ)
  • Mounting Type: Surface Mount
  • Package: 2-SMD, No Lead Exposed Pad
  • Status: Obsolete
