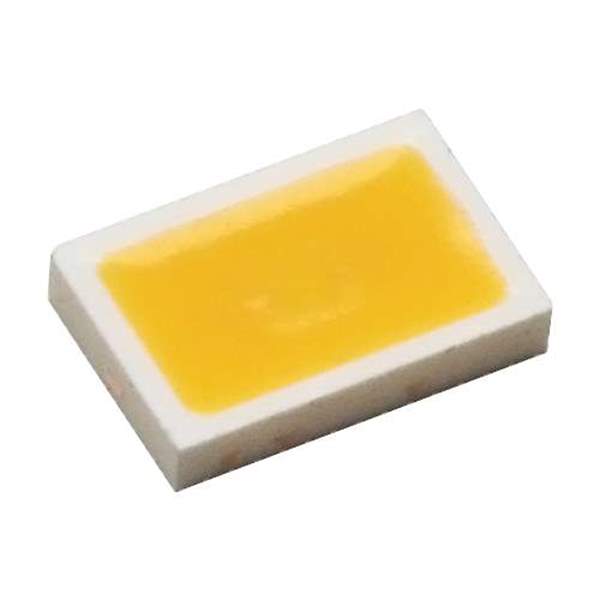

Same model may have multiple batches, images only for reference.

L130-5080002011001

Name: L130-5080002011001
Brand: Lumileds
SKU: 1109380
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	L130-5080002011001
Manufacturer	Lumileds
Catalog	LED Lighting - White
Description	LED LUXEON COOL WHITE 5000K 2SMD / LED Lighting series White, Cool 5000K 3.05V 120mA 1208 (3020 Metric)
Datasheet	L130-5080002011001 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics>LED Lighting - White
Mfr	Lumileds
Series	LUXEON 3020
Package	Tape & Reel
Color	White, Cool
CCT (K)	5000K
Flux @ 25°C, Current - Test	49lm (Typ)
Current - Test	120mA
Voltage - Forward (Vf) (Typ)	3.05V
Lumens/Watt @ Current - Test	134 lm/W
CRI (Color Rendering Index)	80
Current - Max	240mA
Mounting	SMD (SMT)
Package / Case	1208 (3020 Metric)
Supplier Device Package	3020
Dimension	0.118" L x 0.079" W (3.00mm x 2.00mm)
Height - Seated (Max)	0.024" (0.62mm)
Thermal Resistance of Package	13°C/W
Base Product Number	L130
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.41.0000
Other Names	1416-1207-6,1416-1207-2,1416-1207-1
Standard Package	5,000
Win Source Part Number	1109380-L130-5080002011001
Ultra Librarian 3D Model	Ultra Librarian L130-5080002011001 CAD Model

Description

The Lumileds LUXEON 3020 is a white, cool LED with a forward voltage of 3.05V and a maximum current rating of 240mA.

Color: White, Cool
Forward Voltage: 3.05V
Maximum Current Rating: 240mA
Viewing Angle: 1208 (3020 Metric)
Thermal Resistance: 13 degrees Celsius per watt
Luminous Flux @ 25 degrees Celsius: 49lm
Current Test: 120mA
RoHS: Compliant
Height-Seated: 0.024 inches
Application: Optoelectronics and LED lighting
Package: Tape and reel
