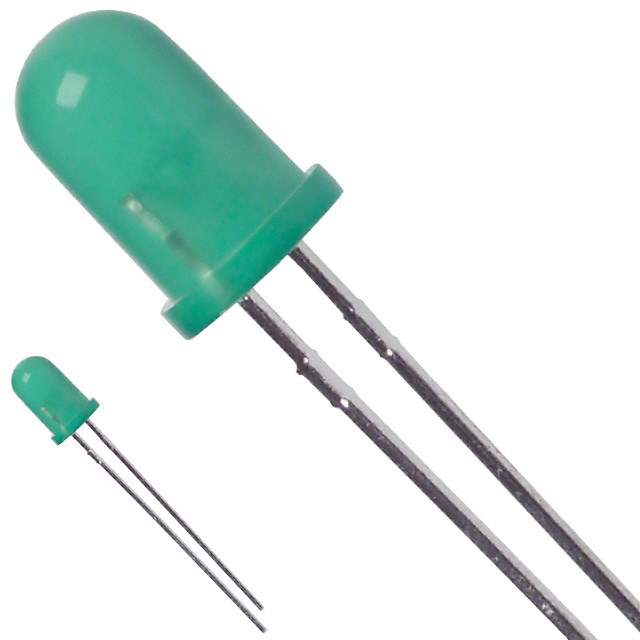

The SSL-LX5093GD-5V is a 5V Green LED indicator manufactured by Lumex Opto/Components Inc. This is a complete indicator solution designed for direct connection to a 5V power supply, simplifying circuit design and reducing the number of external components required. It's well-suited for applications where a clear and reliable visual indication is needed.

Applications

• Logic status indication
• Power on/off indication
• Equipment status displays
• Control panel indicators
• Embedded systems

Features

• Integrated resistor for 5V operation
• Standard 5mm package
• Green light emission
• Low current consumption
• Built-in reverse voltage protection
• Long operating life

Benefits

• Simplified Circuit Design: Integrated resistor eliminates the need for external components, reducing design complexity and cost.
• Direct 5V Compatibility: Designed for direct connection to a 5V power supply, making it easy to integrate into existing circuits.
• Clear Visual Indication: Provides a bright and easily visible green light output.
• Reverse Voltage Protection: Built-in protection prevents damage from reverse voltage connections.
• Reliable Performance: Long operating life ensures consistent and dependable operation.

Additional Details

The SSL-LX5093GD-5V operates directly from a 5V supply voltage and typically consumes a low current, around 5-10mA. The integrated resistor is pre-calculated to limit the current to a safe operating level. The LED has a typical viewing angle of around 60 degrees. The operating temperature range is typically between -25°C and +85°C. The green light emission has a dominant wavelength typically between 565 nm and 575 nm. It is ideal for use in applications where a simple and reliable 5V indicator is required.
