Same model may have multiple batches, images only for reference.

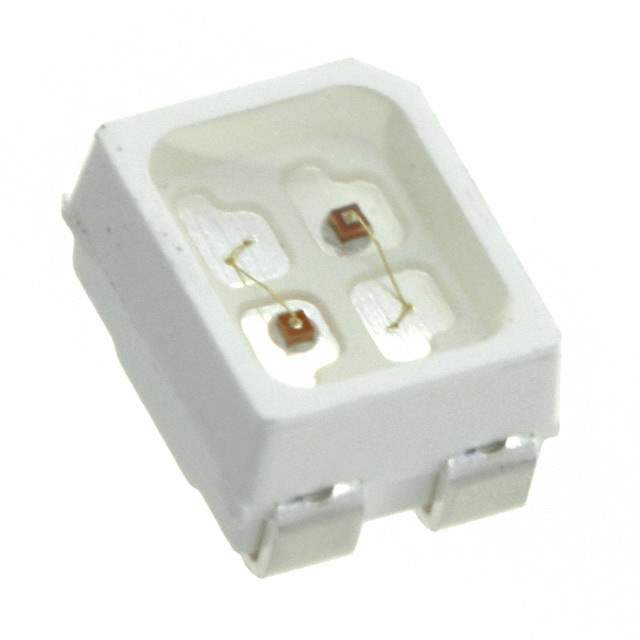

SML-LX2835YGC-TR Real Image
Same model may have multiple batches, images only for reference.

SML-LX2835YGC-TR

Part No SML-LX2835YGC-TR
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED GREEN/YELLOW CLEAR 2835 SMD / Green, Yellow LED Indication - Discrete 2.2V Green, 2.1V Yellow 4-SMD, J-Lead
Datasheet
SML-LX2835YGC-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Tape & Reel
Color Green, Yellow
Configuration Independent
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 25mcd Green, 15mcd Yellow
Lens Style Rectangle with Flat Top
Lens Size 2.64mm x 2.14mm
Voltage - Forward (Vf) (Typ) 2.2V Green, 2.1V Yellow
Current - Test 20mA Green, 20mA Yellow
Viewing Angle 120°
Mounting SMD (SMT)
Wavelength - Peak 565nm Green, 585nm Yellow
Package / Case 4-SMD, J-Lead
Supplier Device Package 2835
Dimension 3.20mm L x 2.70mm W
Height (Max) 1.80mm
Base Product Number SML-LX2835
Other Names 67-2130-6,67-2130-2,67-2130-1,SMLLX2835YGCTR
Standard Package 2,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241893-SML-LX2835YGC-TR
Ultra Librarian 3D Model Ultra Librarian SML-LX2835YGC-TR CAD Model

Description

The SML-LX2835YGC-TR from Lumex Opto/Components Inc. is a green and yellow LED indication for discrete applications.

  • Viewing Angle: 120°
  • Lens Transparency: Clear
  • Package: Tape and reel
  • Standard Package: 2,000
  • Mounting Type: Surface mount, J-lead
  • Package/Case: 4-SMD
  • Height: 1.80mm
  • Dimension: 3.20mm L x 2.70mm W
  • Voltage Forward: 2.2V for green and 2.1V for yellow
  • Millicandela Rating: 25mcd for green and 15mcd for yellow
