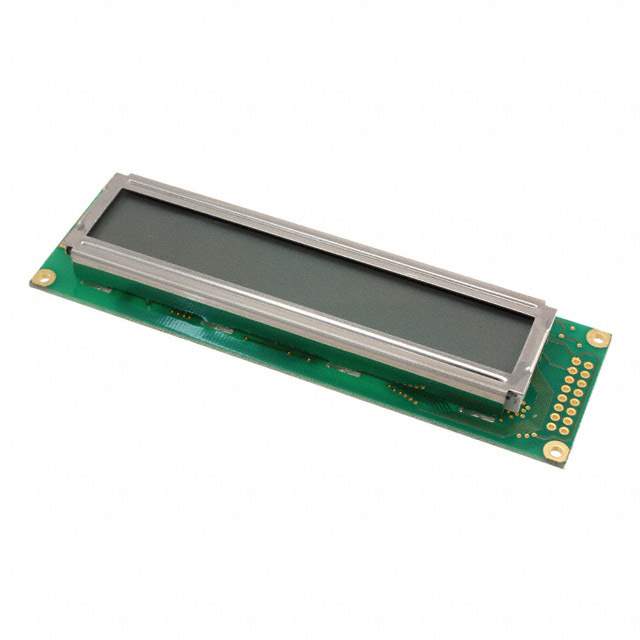

LCM-S02402DSF Real Image
Same model may have multiple batches, images only for reference.

LCM-S02402DSF

Part No LCM-S02402DSF
Manufacturer Lumex Opto/Components Inc.
Catalog Display Modules - LCD, OLED Character and Numeric
Description LCD MOD 48DIG 24X2 TRANS YLW/GRN / Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green Parallel 118.00mm x 36.00mm x 12.70mm
Datasheet
LCM-S02402DSF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LCD, OLED Character and Numeric
Mfr Lumex Opto/Components Inc.
Package Bulk
Number of Characters 48
Display Format 24 x 2
Character Format 5 x 8 Dots
Display Type STN - Super-Twisted Nematic
Display Mode Transflective
Character Size 5.55mm H x 3.20mm W
Outline L x W x H 118.00mm x 36.00mm x 12.70mm
Viewing Area 93.50mm L x 16.00mm W
Backlight LED - Yellow/Green
Voltage - Supply 5V
Dot Size 0.60mm W x 0.65mm H
Interface Parallel
Temperature Range - Operating 0°C ~ 50°C
Background Color Green
Base Product Number LCM-S02402
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8531.20.0020
Other Names LCMS02402DSF,67-1764-NDR,67-1764
Standard Package 30
Win Source Part Number 1211564-LCM-S02402DSF
Ultra Librarian 3D Model Ultra Librarian LCM-S02402DSF CAD Model

Description

The LCM-S02402DSF is a 24x2 character format display module from Lumex Opto/Components Inc. that uses parallel interface and STN display type.

  • Character Format: 24x2
  • Interface: Parallel
  • Display Type: STN
  • Viewing Area Length: 93.50mm
  • Viewing Area Width: 16.00mm
  • Backlight: LED - Yellow/Green
  • Character Size Height: 5.55mm
  • Character Size Width: 3.20mm
  • Dot Size Width: 0.60mm
  • Dot Size Height: 0.65mm
  • Display Mode: Transflective
  • Background Color: Green
  • Text Color: None
  • Outline Dimension Length: 118.00mm
  • Outline Dimension Width: 36.00mm
  • Outline Dimension Height: 12.70mm
  • Package: Bulk
  • Standard Package: 30
  • Application: Optoelectronics, LCD, OLED character and numeric displays
