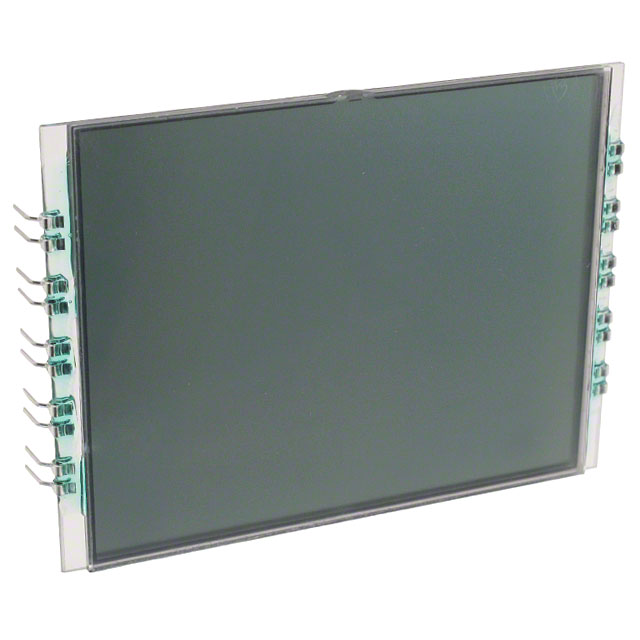

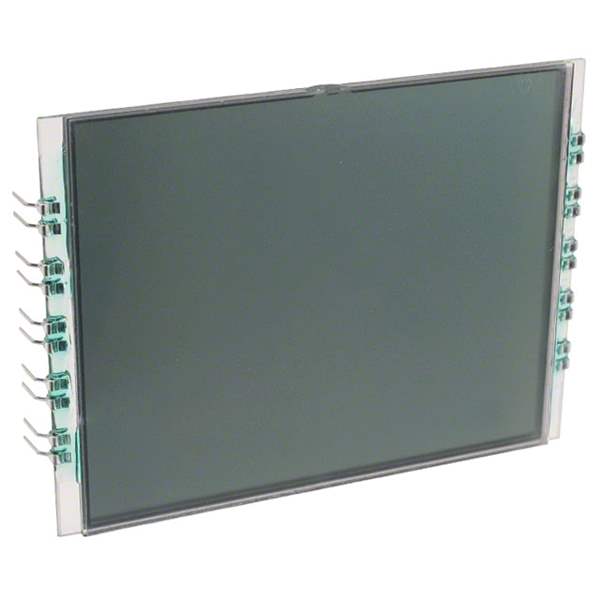

LCD-S101D22TR Lumex Opto/Components Inc.
Same model may have multiple batches, images only for reference.

LCD-S101D22TR

Part No LCD-S101D22TR
Manufacturer Lumex Opto/Components Inc.
Catalog Display Modules - LCD, OLED Character and Numeric
Description LCD 7-SEG DISP 2.21" SNGL DIGIT
Datasheet
LCD-S101D22TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Lumex Opto/Components Inc.
Status Active
Number of Characters 1
Display Format 1 x 1
Character Format 7-Segment
Display Type TN - Twisted Nematic
Display Mode Reflective
Character Size 56.13mm H x 36.70mm W
Outline L x W x H 76.20mm x 55.88mm x 2.80mm
Viewing Area 50.80mm L x 65.02mm W
Backlight Without Backlight
Supply Voltage - Operating 5V
Temperature Range - Operating 0°C to 50°C
Win Source Part Number 1093197-LCD-S101D22TR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LCD-S101D22TR CAD Model

Description

The LCD-S101D22TR is a reflective TN - Twisted Nematic display from Lumex Opto/Components Inc.

  • Character Count: 1
  • Character Format: 7-segment
  • Display Format: 1 x 1
  • Character Size: 56.13mm H x 36.70mm W
  • Viewing Area: 50.80mm L x 65.02mm W
  • Outline: 76.20mm x 55.88mm x 2.80mm
  • Backlight: None
  • Operating Temperature Range: 0°C to 50°C
  • Operating Supply Voltage: 5V
