Same model may have multiple batches, images only for reference.

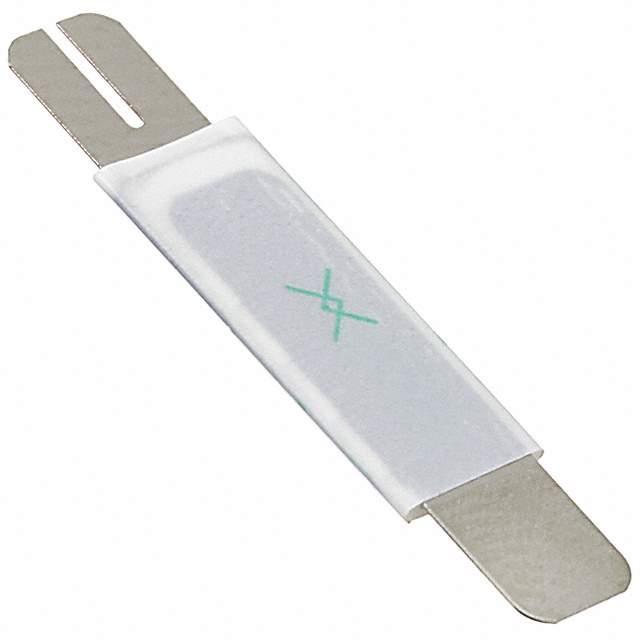

VTP210SF Real Image
Same model may have multiple batches, images only for reference.

VTP210SF

Part No VTP210SF
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH PTC RESET 2.1A STRAP / PTC Resettable Fuse 2.1A(hold) 4.7A(trip) 16VDC 100A 1.5W 5s 0.018Ohm SMD Solder Pad 11.5 X 5.3 X 0.8mm Loose
Datasheet
VTP210SF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series PolySwitch, VTP
Packaging Bulk
Type Polymeric
Voltage - Max 16V
Current - Max 100A
Current - Hold (Ih) (Maximum) 2.1A
Current - Trip (It) 4.7A
Time to Trip 5s
Resistance - Initial (Ri) (Minimum) 18 mOhm
Resistance - Post Trip (R1) (Maximum) 60 mOhm
Operating Temperature Range -40°C ~ 85°C
Mounting User Defined
Package Strap
Dimension 0.909" L x 0.209" W (23.10mm x 5.30mm)
Thickness (Maximum) 0.032" (0.80mm)
Approvals CSA, TUV, UL
Win Source Part Number 799252-VTP210SF
Popularity Medium
Supply and Demand Status Limited
Introduction Date November 09, 2015
ECCN EAR99
Country of Origin China
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian VTP210SF CAD Model

Description

The Littelfuse Inc. PolySwitch VTP series is a type of polymeric circuit protection device that comes with a maximum voltage of 16V and a maximum current of 100A.

  • Maximum Voltage: 16V
  • Maximum Current: 100A
  • Current Trip: 4.7A
  • Time-to-Trip: 5s
  • Mounting: User-defined
  • Package: Strap
  • Approvals: CSA, TUV, UL
  • Operating Temperature: -40°C to 85°C
  • Dimension: 0.909" L x 0.209" W (23.10mm x 5.30mm)
  • Thickness: 0.032" (0.80mm)
  • Initial Resistance: 18 mOhm
  • Post-Trip Resistance: 60 mOhm
  • Introduction Date: November 2015 (China)
  • Availability: Until 2028
  • Supply and Demand Status: Limited
