Same model may have multiple batches, images only for reference.

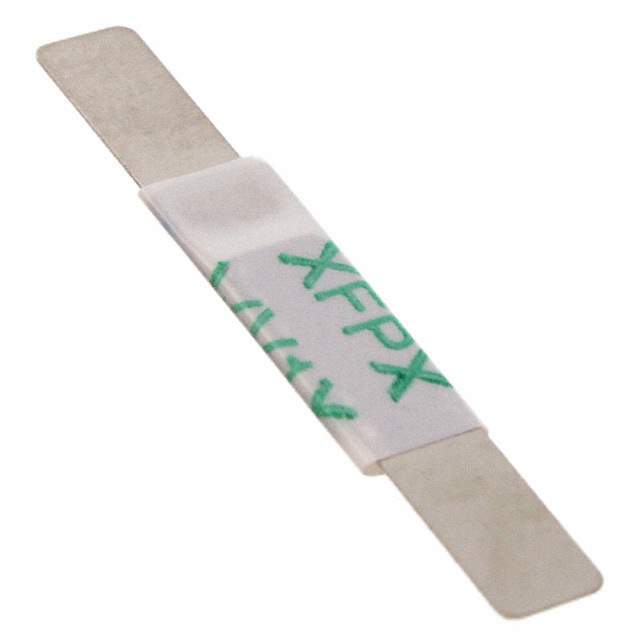

VTP175F Real Image
Same model may have multiple batches, images only for reference.

VTP175F

Part No VTP175F
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 16V 1.75A STRAP / PolySwitch Resettable Devices Strap Battery Devices
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Type Polymeric
Voltage - Max 16V
Current - Max 100A
Current - Hold (Ih) (Maximum) 1.75A
Current - Trip (It) 3.6A
Time to Trip 5s
Resistance - Initial (Ri) (Min) 29 mOhms
Resistance - Post Trip (R1) (Maximum) 102 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Style User Defined
Manufacturer Package Strap
Dimension 0.874" L x 0.146" W (22.20mm x 3.70mm)
Thickness (Maximum) 0.032" (0.80mm)
Approvals CSA, TUV, UL
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803050-VTP175F
Ultra Librarian 3D Model Ultra Librarian VTP175F CAD Model

Description

The 803050-VTP175F is a polymeric fuse from Littelfuse Inc.

  • Maximum Voltage: 16V
  • Maximum Current: 100A
  • Current Trip (It): 3.6A
  • Time to Trip: 5s
  • Current Hold (Ih): 1.75A
  • Initial Resistance (Ri): 29mΩ
  • Mounting Method: User-defined
  • Approvals: CSA, TUV, UL
  • Temperature Range: -40°C to 85°C
  • Dimensions: 0.874" L x 0.146" W (22.20mm x 3.70mm)
  • Thickness: 0.032" (0.80mm)
