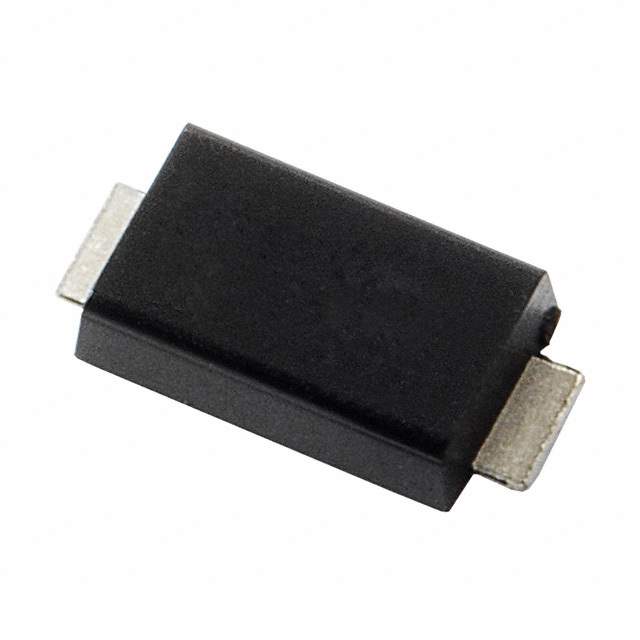

TPSMA6L60A Real Image
Same model may have multiple batches, images only for reference.

TPSMA6L60A

Part No TPSMA6L60A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 60V 96.8V DO221AC / Transient Voltage Suppression Diodes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Reel
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 60V
Voltage - Breakdown (Min) 66.7V
Voltage - Clamping (Maximum) at Ipp 96.8V
Current - Peak Pulse (10/1000μs) 6.2A
Power - Peak Pulse 600W
Power Line Protection No
Applications Automotive
Temperature Range - Operating -50°C ~ 150°C
Mounting Style SMD
Manufacturer Package DO-221AC, SMA Flat Leads
Supplier Device Package DO-221AC
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802229-TPSMA6L60A
Ultra Librarian 3D Model Ultra Librarian TPSMA6L60A CAD Model

Description

The TPSMA6L60A unidirectional zener SMD component is designed for automotive applications by Littelfuse Inc.

  • Voltage Rating: 60V
  • Voltage Breakdown (Minimum): 66.7V
  • Peak Pulse Current: 6.2A @ 10/1000μs
  • Peak Pulse Power: 600W
  • Package: DO-221AC
  • Voltage Clamping (Maximum) @ Ipp: 96.8V
  • Temperature Range: -50 to 150 degrees Celsius
  • Package Type: Reel
  • Manufacturer Pack Quantity: 3,000
  • MSL Level: 1 (Unlimited)
