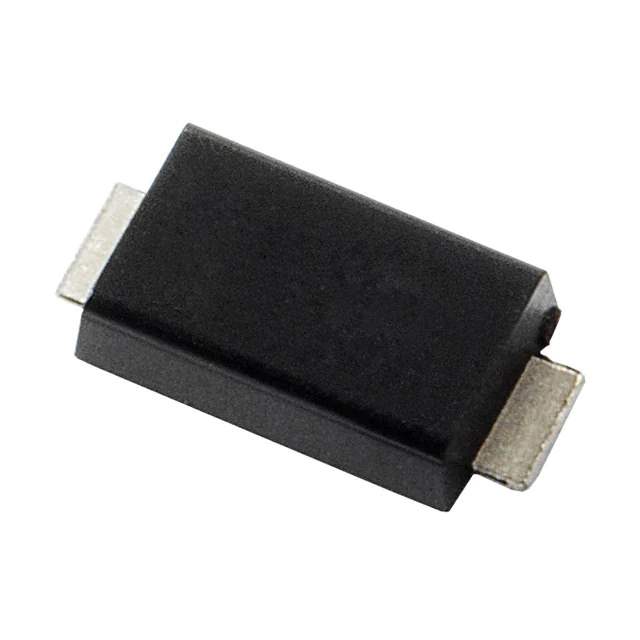

TPSMA6L33A

Part No TPSMA6L33A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 33VWM 53.3VC DO221AC
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Littelfuse Inc.
Series Automotive, AEC-Q101, TPSMA6L
Package Tape & Reel
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 33V
Voltage - Breakdown (Min) 36.7V
Voltage - Clamping (Max) @ Ipp 53.3V
Current - Peak Pulse (10/1000µs) 11.3A
Power - Peak Pulse 600W
Power Line Protection No
Applications Automotive
Temperature Range - Operating -50°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-221AC, SMA Flat Leads
Supplier Device Package DO-221AC
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
California Prop 65 Warning Information
Win Source Part Number 850216-TPSMA6L33A
Ultra Librarian 3D Model Ultra Librarian TPSMA6L33A CAD Model

Description

TPSMA6L33A from Littelfuse Inc. is a TVS diode intended for transient voltage protection in electronic circuits that may be exposed to surge events, ESD, or other overvoltage conditions. Parts in this category are commonly used to help protect power rails, industrial controls, telecom interfaces, consumer electronics, and embedded systems where reliability under electrical stress is important. For design teams, this component is positioned as a circuit protection device that can support robustness and reduce the risk of downstream component damage during transient events. It may be considered in new or sustaining designs where board-level surge suppression is required, but engineers should confirm the exact electrical characteristics in the official Littelfuse datasheet before qualification. Lifecycle status for TPSMA6L33A is currently information not available from the provided data, so supply continuity should be verified with the manufacturer or authorized distribution. RoHS compliance information is also not available here and should be confirmed through current manufacturer compliance documentation.
