Same model may have multiple batches, images only for reference.

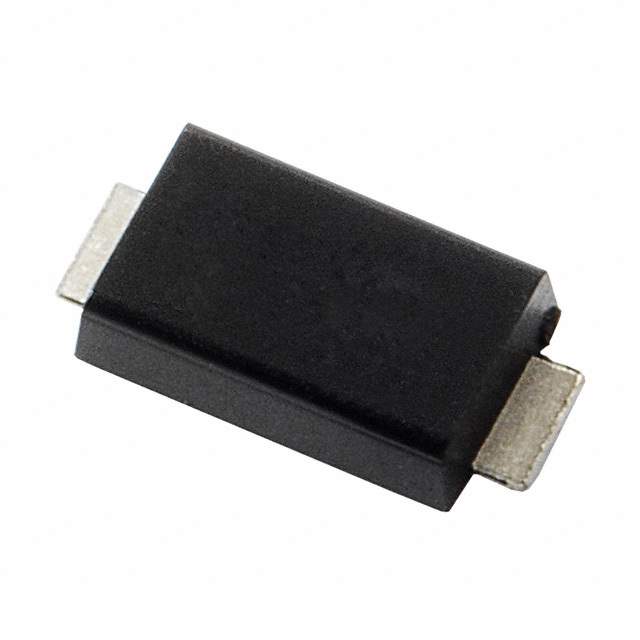

TPSMA6L30A Real Image
Same model may have multiple batches, images only for reference.

TPSMA6L30A

Part No TPSMA6L30A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 30VWM 48.4VC DO221AC
Datasheet
TPSMA6L30A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 43 Weeks
Features 48.4V Clamp 12.4A Ipp Tvs Diode Surface Mount DO-221AC
Manufacturer Littelfuse Inc.
Series Automotive, AEC-Q101, TPSMA6L
Package Reel - TR
Operating Temperature Range -50°C ~ 150°C (TJ)
Mounting Surface Mount
Package DO-221AC, SMA Flat Leads
Case / Package DO-221AC
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number -TPSMA6L30A, F6161CT, F6161TR, F6161DKR
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 901065-TPSMA6L30A
Ultra Librarian 3D Model Ultra Librarian TPSMA6L30A CAD Model

Description

The TPSMA6L30A is an automotive grade TVS Diode with 48.4V clamp voltage and 12.4A peak pulse current.

  • Clamp Voltage: 48.4V
  • Peak Pulse Current: 12.4A
  • Purpose: Protect sensitive electronics from voltage transients induced by lightning and other transient voltage events
  • Mounting: Surface mount
  • Package: DO-221AC, SMA flat leads
  • Packaging: Reel
  • Operating Temperature Range: -50°C ~ 150°C (TJ)
  • Compliance: AEC-Q101 compliant
  • Application: Circuit protection
