Same model may have multiple batches, images only for reference.

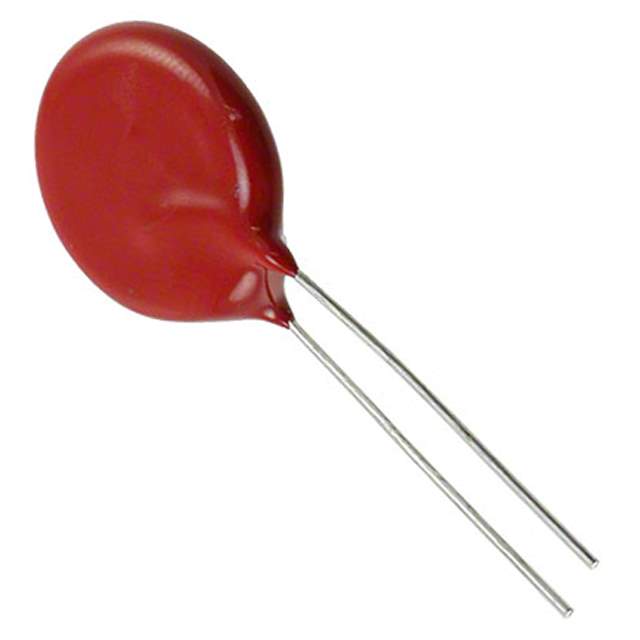

TMOV20RP275E Real Image
Same model may have multiple batches, images only for reference.

TMOV20RP275E

Part No TMOV20RP275E
Manufacturer Littelfuse Inc.
Catalog TVS - Varistors, MOVs
Description VARISTOR 430V 10KA DISC 20MM / Var MOV 275VAC/350VDC 10000A 473V Thru-Hole Radial Bulk
Datasheet
TMOV20RP275E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series TMOV
Packaging Bulk
Varistor Voltage (Minimum) 387V
Varistor Voltage (Typ) 430V
Varistor Voltage (Maximum) 473V
Current - Surge 10kA
Energy 190J
Number of Circuits 1
Maximum AC Volts 275VAC
Maximum DC Volts 350VDC
Capacitance @ Frequency 900pF @ 1MHz
Operating Temperature Range -55°C ~ 85°C (TA)
Mounting Style Through Hole
Package Disc 20mm
Win Source Part Number 791260-TMOV20RP275E
Popularity Medium
Supply and Demand Status Limited
Family Name TMOV
Introduction Date October 05, 2007
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian TMOV20RP275E CAD Model

Description

The Littelfuse Inc. TMOV20RP275E is a circuit protection product.

  • Varistor Voltage (Typ): 430V
  • Maximum AC Volts: 275VAC
  • Capacitance: 900pF @ 1MHz
  • Surge Current: 10kA
  • Mounting Type: Through Hole
  • Package: Disc 20mm
