Same model may have multiple batches, images only for reference.

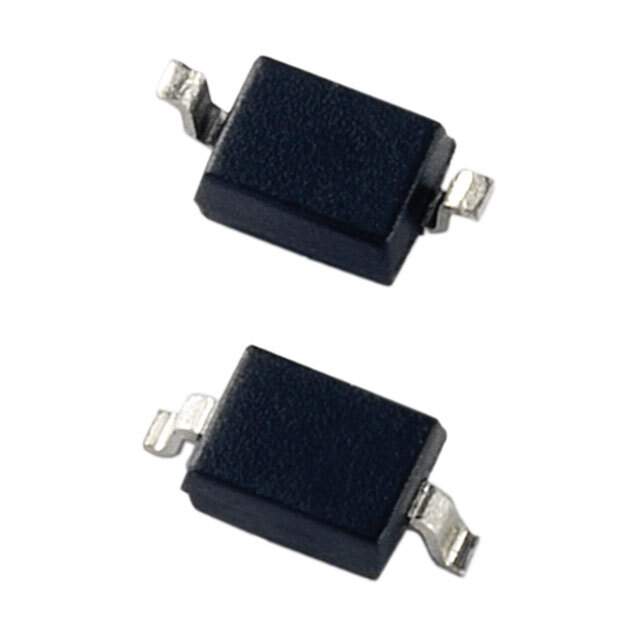

SP4022-01FTG Real Image
Same model may have multiple batches, images only for reference.

SP4022-01FTG

Part No SP4022-01FTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 12VWM 35VC SOD323
Datasheet
SP4022-01FTG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 12V (Max)
Minimum Breakdown Voltage 13.3V
Max Clamping Voltage 35V
Peak Pulse Current(Ippm) 15A (8/20μs)
Power Dissipation - Pd 500W
Applications Automotive
Capacitance @ Frequency 1.3pF @ 1MHz
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SOD-323
Win Source Part Number 1101350-SP4022-01FTG
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SP4022-01FTG CAD Model

Description

The Littelfuse Inc. SP4022-01FTG is a steering diode that is designed for use in automotive applications.

  • Maximum Stand-off Voltage: 12 V
  • Minimum Breakdown Voltage: 13.3 V
  • Popularity Rating: Medium
  • Supply and Demand Status: Balanced
