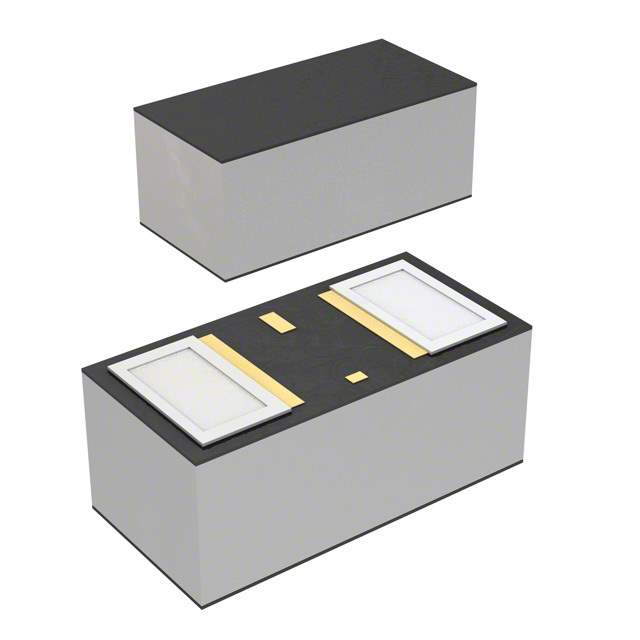

SP3522-01UTG Real Image
Same model may have multiple batches, images only for reference.

SP3522-01UTG

Part No SP3522-01UTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 7VWM 14.5VC 0201
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 49 Weeks
Features 14.5V (Typ) Clamp 2.5A (8/20µs) Ipp Tvs Diode Surface Mount 0201/DFN0603
Manufacturer Littelfuse Inc.
Series Automotive, AEC-Q101, SP3522, SPA®
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C (TA)
Mounting Surface Mount
Package 0201 (0603 Metric)
Case / Package 0201/DFN0603
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number F10265DKR, F10265CT, -SP3522-01UTG, F10265TR
Quantity per package 15000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 934721-SP3522-01UTG
Ultra Librarian 3D Model Ultra Librarian SP3522-01UTG CAD Model

Description

The Littelfuse Inc. SP3522-01UTG is a surface mount TVS diode with 14.5V (typ) clamp and 2.5A (8/20µs) Ipp.

  • Clamp: 14.5V (typ)
  • Ipp: 2.5A (8/20µs)
  • Package: 0201/DFN0603
  • Operating Temperature Range: -40°C to 125°C
  • Supply and Demand Status: Balance
  • Popularity: High
  • Estimated Production Lead Time: 49 weeks
  • Suitable for: Circuit protection
