Same model may have multiple batches, images only for reference.

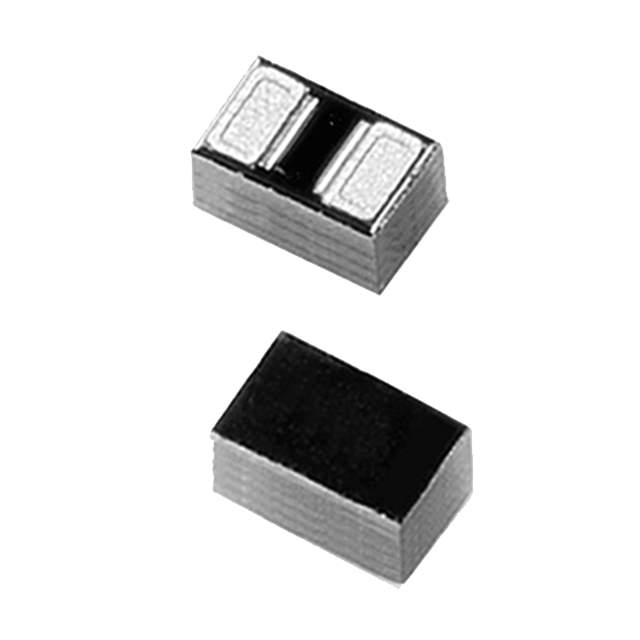

SP3118-01WTG Real Image
Same model may have multiple batches, images only for reference.

SP3118-01WTG

Part No SP3118-01WTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 18VWM 38VC 0201 FLIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 51 Weeks
Features 38V Clamp 2A (8/20µs) Ipp Tvs Diode Surface Mount 0201 FlipChip
Manufacturer Littelfuse Inc.
Series SP3118, SPA®
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C (TJ)
Mounting Surface Mount
Package 0201 (0603 Metric)
Case / Package 0201 Flipchip
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number F7504DKR, F7504TR, F7504CT, -SP3118-01WTG
Quantity per package 10000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 934714-SP3118-01WTG
Ultra Librarian 3D Model Ultra Librarian SP3118-01WTG CAD Model

Description

The SP3118 series TVS diode from Littelfuse Inc. is a surface mount device with a 38V clamp and 2A (8/20µs) Ipp.

  • Clamp: 38V
  • Ipp: 2A (8/20µs)
  • Package: 0201 flip-chip
  • Operating Temperature Range: -40°C to 125°C (TJ)
  • Packaging: Reel
  • Quantity per package: 10000
  • Series: SPA®
  • Suitable for: Circuit protection applications
