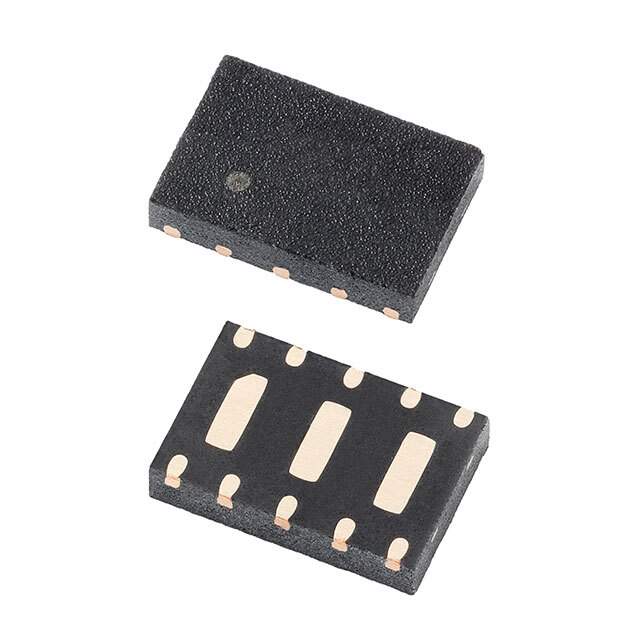

Same model may have multiple batches, images only for reference.

SP2525NUTG

Name: SP2525NUTG
Brand: Littelfuse Inc.
SKU: 1226860
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SP2525NUTG
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 2.5VWM 11VC 10UDFN / 11V Clamp 30A (8/20µs) Ipp Tvs Diode Surface Mount 10-µDFN (3x2)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Mfr	Littelfuse Inc.
Series	SP2525N, SPA®
Package	Tape & Reel
Type	Zener
Unidirectional Channels	4
Voltage - Reverse Standoff (Typ)	2.5V (Max)
Voltage - Breakdown (Min)	5.5V
Voltage - Clamping (Max) @ Ipp	11V
Current - Peak Pulse (10/1000µs)	30A (8/20µs)
Power Line Protection	No
Applications	Ethernet
Capacitance @ Frequency	1.7pF @ 1MHz
Temperature Range - Operating	-40°C ~ 125°C (TA)
Mounting	SMD (SMT)
Package / Case	10-UDFN Exposed Pad
Supplier Device Package	10-µDFN (3x2)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	18-SP2525NUTGTR,18-SP2525NUTG-ND,-1024-SP2525NUTGTR,18-SP2525NUTGCT,18-SP2525NUTGDKR
Standard Package	3,000
Win Source Part Number	1226860-SP2525NUTG
Ultra Librarian 3D Model	Ultra Librarian SP2525NUTG CAD Model

Alternative Products

Description

The SP2525NUTG from Littelfuse Inc. is a Zener type circuit protection component that is designed for electronic devices that require protection against overvoltage.

Reverse Standoff Voltage: 2.5V (Max)
Breakdown Voltage: 5.5V (Min)
Voltage Clamping: 11V
Peak Pulse Current: 30A (8/20µs)
Package Type: Tape & Reel
Mounting Type: SMD (SMT)
Series: SP2525N, SPA®
Standard Package: 3,000
Application: Ethernet
MSL Level: 1 (Unlimited)
