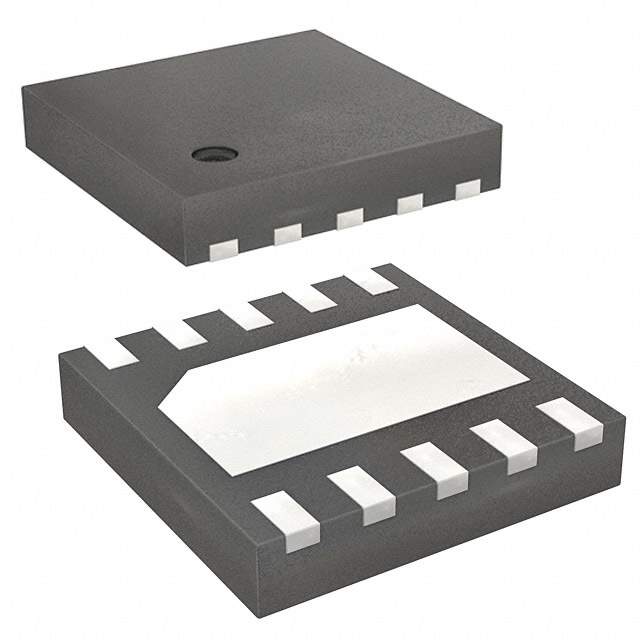

SP2504NUTG Real Image
Same model may have multiple batches, images only for reference.

SP2504NUTG

Part No SP2504NUTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 2.5VWM 11.5VC UDFN10
Datasheet
SP2504NUTG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 4
STAND-OFF Voltage (Vwm) 2.5V (Max)
Max Clamping Voltage 11.5V
Peak Pulse Current(Ippm) 20A (8/20μs)
Power Dissipation - Pd 300W
Power Line Protection Yes
Applications General Purpose
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 10-uDFN (2.6x2.6)
Win Source Part Number 121556-SP2504NUTG
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SP2504NUTG CAD Model

Description

The Littelfuse Inc. 121556-SP2504NUTG is a steering (rail to rail) type circuit protection component with 4 unidirectional channels and power line protection.

  • Type: Steering (rail to rail)
  • Channels: 4 Unidirectional
  • Protection: Power Line Protection
  • Maximum Clamping Voltage: 11.5V
  • Peak Pulse Current (Ippm): 20A (8/20μs)
  • STAND-OFF Voltage (Vwm): 2.5V (Max)
  • Operating Temperature: -40°C to 125°C (TJ)
  • Power Dissipation - Pd: 300W
  • Mounting Technology: SMD (SMT)
  • Applications: General Purpose
  • Package: 10-uDFN (2.6x2.6)
