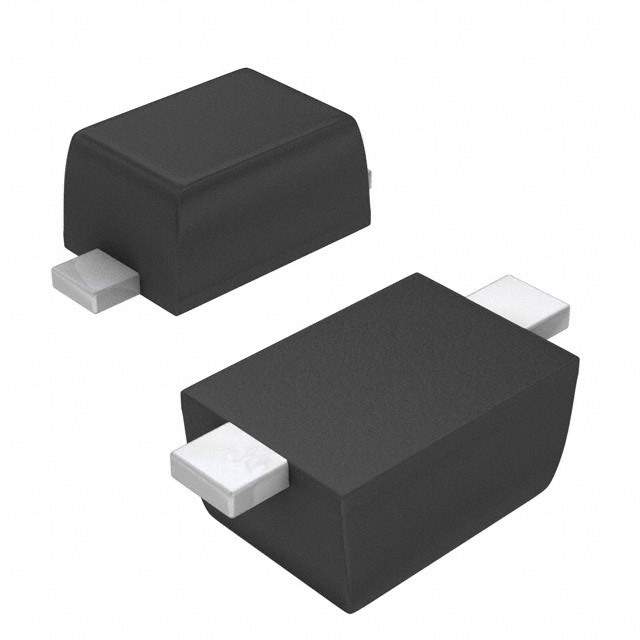

SP1326-01LTG

Part No SP1326-01LTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 6VWM 15.5VC SOD523 / 15.5V (Typ) Clamp 4A (8/20µs) Ipp Tvs Diode Surface Mount SOD-523
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Series SP1326, SPA®
Package Tape & Reel
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 6V (Max)
Voltage - Breakdown (Min) 7.8V (Typ)
Voltage - Clamping (Max) @ Ipp 15.5V (Typ)
Current - Peak Pulse (10/1000µs) 4A (8/20µs)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 15pF @ 1MHz
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting SMD (SMT)
Package / Case SC-79, SOD-523
Supplier Device Package SOD-523
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names F10717DKR,F10717CT,-SP1326-01LTG,F10717TR
Standard Package 5,000
Win Source Part Number 959434-SP1326-01LTG
Ultra Librarian 3D Model Ultra Librarian SP1326-01LTG CAD Model

Description

The Littelfuse Inc. SP1326-01LTG is a Zener diode that is used for general purpose applications. It is packaged in tape and reel and has one bidirectional channel. The diode has a voltage reverse standoff of 6V (max) and a voltage breakdown of 7.8V (typ). It has a voltage clamping of 15.5V (typ) @ Ipp. The diode has a capacitance of 15pF @ 1MHz and a current peak pulse of 4A (8/20µs). It is mountable on a surface using SMD (SMT) technology. The diode is 5,000 in standard package and is available in SC-79, SOD-523 package/case. It has a temperature range of -40°C to 125°C (TA) and is EAR99 compliant. The diode is in the category of circuit protection and is also available in alternative parts with cross-reference.
