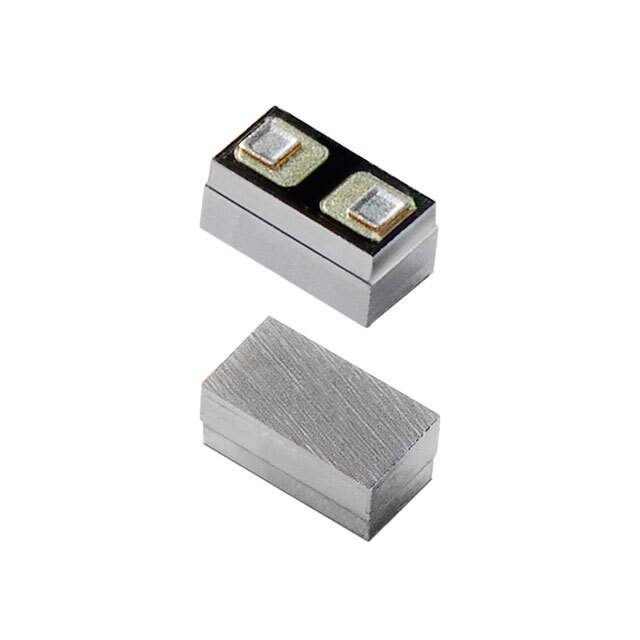

SP1020-01WTG Real Image
Same model may have multiple batches, images only for reference.

SP1020-01WTG

Part No SP1020-01WTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 6VWM 10VC FLIPCHIP
Datasheet
SP1020-01WTG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 6V (Max)
Max Clamping Voltage 10V
Peak Pulse Current(Ippm) 2A (8/20μs)
Applications General Purpose
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 2-FlipChip
Win Source Part Number 122481-SP1020-01WTG
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SP1020-01WTG CAD Model

Description

The SP1020-01WTG from Littelfuse is a bidirectional zener diode designed for use in general-purpose applications.

  • Type: bidirectional zener diode
  • Application: general-purpose applications
  • Packaging: SMD (SMT)
  • Mounting: mounted on a reel
  • Maximum Stand-off Voltage: 6V
  • Peak Pulse Current: 2A (8/20μs)
  • Maximum Clamping Voltage: 10V
  • Operating Temperature: -40°C to 125°C (TJ)
  • Category: circuit protection
  • Usage: widely used in electronic circuits
  • Case/Package: 2-FlipChip
  • Popularity: medium
