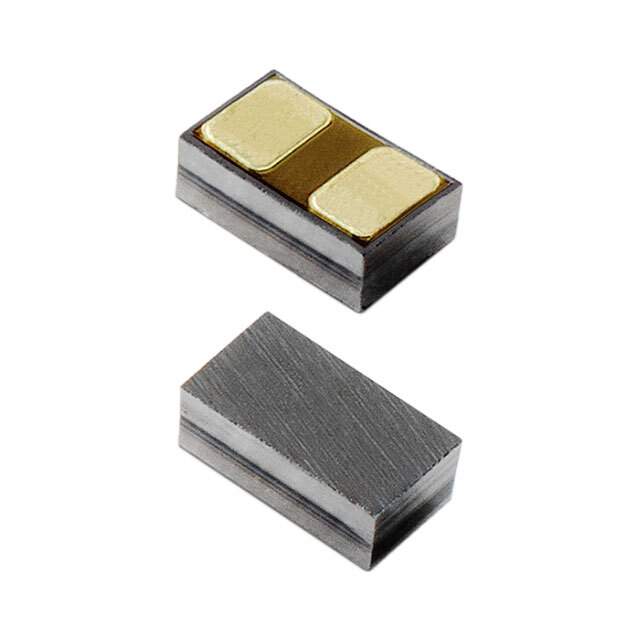

Same model may have multiple batches, images only for reference.

SP1013-01WTG

Name: SP1013-01WTG
Brand: Littelfuse Inc.
SKU: 965183
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SP1013-01WTG
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 5VWM 9.5VC 2FLIPCHIP / 9.5V Clamp 2A (8/20µs) Ipp Tvs Diode Surface Mount 2-FlipChip
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Mfr	Littelfuse Inc.
Series	SP1013, SPA®
Package	Tape & Reel
Product Status	Obsolete
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	7V
Voltage - Clamping (Max) @ Ipp	9.5V
Current - Peak Pulse (10/1000µs)	2A (8/20µs)
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	30pF @ 1MHz
Temperature Range - Operating	-40°C ~ 125°C (TJ)
Mounting	SMD (SMT)
Package / Case	0201 (0603 Metric)
Supplier Device Package	2-FlipChip
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	F6749TR,F6749CT,F6749DKR,SP1013-01WTG-ND,-SP1013-01WTG
Standard Package	15,000
Win Source Part Number	965183-SP1013-01WTG
Ultra Librarian 3D Model	Ultra Librarian SP1013-01WTG CAD Model

Alternative Products

Description

The SP1013-01WTG is an electronic component manufactured by Littelfuse Inc.

Supply and Demand Status: Limited
Win Source Part Number: 965183-SP1013-01WTG
Series: SP1013, SPA®
Type: Zener
Package: Tape and Reel
Standard Package: 15,000
Mounting: SMD (SMT)
Channels: Bidirectional, 1
Voltage - Reverse Standoff (typ): 5V (max)
Voltage - Breakdown (min): 7V
Voltage - Clamping (max) @ Ipp: 9.5V
Capacitance @ Frequency: 30pF @ 1MHz
Current - Peak Pulse (10/1000µs): 2A (8/20µs)
Package/Case: 0201 (0603 Metric)
Supplier Device Package: 2-FlipChip
Temperature Range - Operating: -40°C ~ 125°C (TJ)
