Same model may have multiple batches, images only for reference.

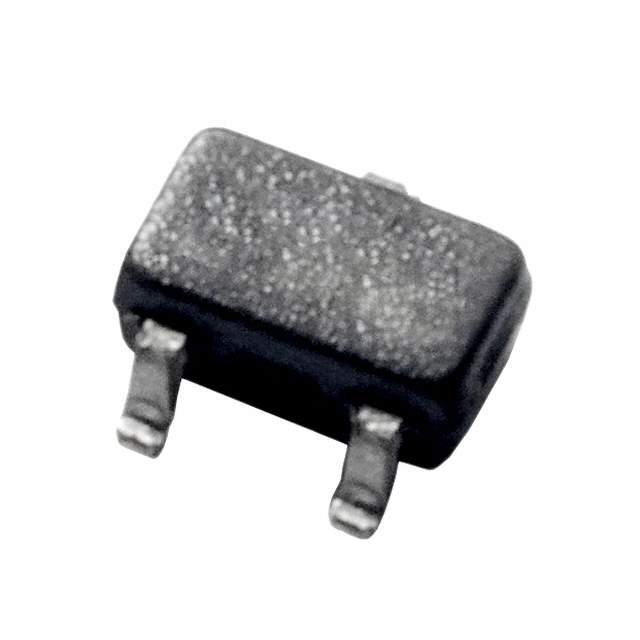

SP1001-02JTG Real Image
Same model may have multiple batches, images only for reference.

SP1001-02JTG

Part No SP1001-02JTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 5.5VWM 13VC SC703
Datasheet
SP1001-02JTG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 2
STAND-OFF Voltage (Vwm) 5.5V (Max)
Minimum Breakdown Voltage 7V
Max Clamping Voltage 13V
Peak Pulse Current(Ippm) 2A (8/20μs)
Applications Automotive
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SC-70-3
Win Source Part Number 1101141-SP1001-02JTG
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Computers & Computer Peripherals, Consumer Electronics, Imaging, Video & Vision, Audio, Automotive, Industrial
Ultra Librarian 3D Model Ultra Librarian SP1001-02JTG CAD Model

Description

The Littelfuse Inc. 1101141-SP1001-02JTG is a zener type circuit protection component with unidirectional channels.

  • Type: Zener
  • Channels: Unidirectional
  • Ideal for: Automotive Applications
  • Mounting Type: Surface Mount
  • STAND-OFF Voltage: 5.5V (Max)
  • Minimum Breakdown Voltage: 7V
  • Maximum Clamping Voltage: 13V
  • Peak Pulse Current: 2A (8/20μs)
  • Supply and Demand Status: Balanced
  • Applications: Computers & Computer Peripherals, Consumer Electronics, Imaging, Video & Vision, Audio, Automotive, and Industrial Applications
