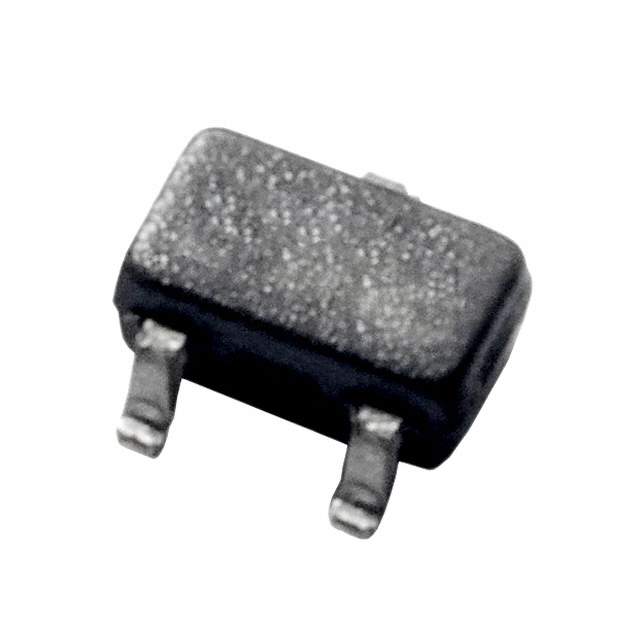

SP0502BAJTG Real Image
Same model may have multiple batches, images only for reference.

SP0502BAJTG

Part No SP0502BAJTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 5.5VWM 8.5VC SC703
Datasheet
SP0502BAJTG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 2
STAND-OFF Voltage (Vwm) 5.5V (Max)
Max Clamping Voltage 8.5V
Applications General Purpose
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package SC-70-3
Win Source Part Number 117038-SP0502BAJTG
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SP0502BAJTG CAD Model

Description

The 117038-SP0502BAJTG is a zener diode manufactured by Littelfuse Inc.

  • Type: zener diode
  • Maximum Stand-off Voltage: 5.5V
  • Clamping Voltage: 8.5V
  • Peak Pulse Current: up to 2A
  • Application: designed for general-purpose applications
  • Temperature Range: -40°C to 85°C
  • Supply and demand status: balanced
