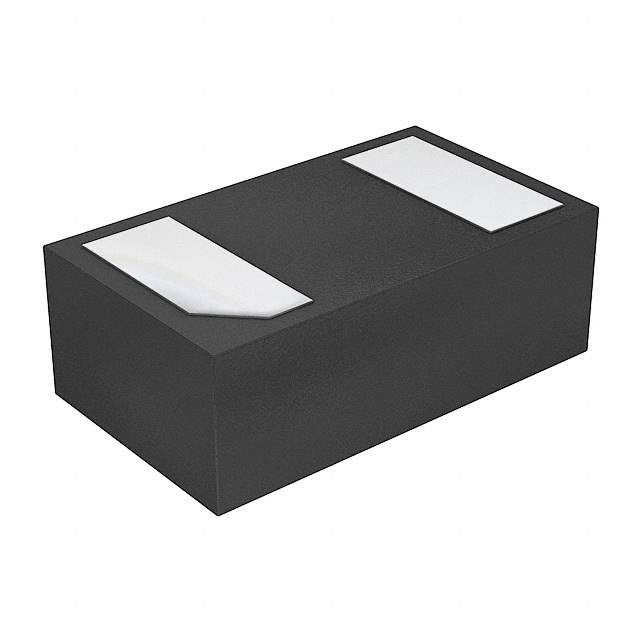

Same model may have multiple batches, images only for reference.

SP0402U-ULC-02ETG

Name: SP0402U-ULC-02ETG
Brand: Littelfuse Inc.
SKU: 1108819
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SP0402U-ULC-02ETG
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 5VWM 9.2VC 0402/2DFN / 9.2V (Typ) Clamp 2A (8/20µs) Ipp Tvs Diode Surface Mount 0402/2DFN (1x0.60)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Mfr	Littelfuse Inc.
Series	SPA®
Package	Tape & Reel
Type	Zener
Unidirectional Channels	2
Voltage - Reverse Standoff (Typ)	5V
Voltage - Breakdown (Min)	9V (Typ)
Voltage - Clamping (Max) @ Ipp	9.2V (Typ)
Current - Peak Pulse (10/1000µs)	2A (8/20µs)
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	0.2pF @ 1MHz
Temperature Range - Operating	-40°C ~ 125°C
Mounting	SMD (SMT)
Package / Case	0402 (1006 Metric)
Supplier Device Package	0402/2DFN (1x0.60)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	F9748TR,18-SP0402U-ULC-02ETGDKR,F9748TR-ND,18-SP0402U-ULC-02ETGCT,18-SP0402U-ULC-02ETGTR
Standard Package	10,000
Win Source Part Number	1108819-SP0402U-ULC-02ETG
Ultra Librarian 3D Model	Ultra Librarian SP0402U-ULC-02ETG CAD Model

Alternative Products

Description

The electronic component with Win Source Part Number 1108819-SP0402U-ULC-02ETG is a Zener diode that belongs to the series SPA®.

Series: SPA®
Category: Circuit Protection
Voltage - Reverse Standoff: 5V
Voltage - Breakdown: 9V (Typ)
Voltage - Clamping (Max) @ Ipp: 9.2V (Typ)
Capacitance @ Frequency: 0.2pF @ 1MHz
Package / Case: 0402 (1006 Metric)
Supplier Device Package: 0402/2DFN (1x0.60)
Temperature Range: -40°C ~ 125°C
