Same model may have multiple batches, images only for reference.

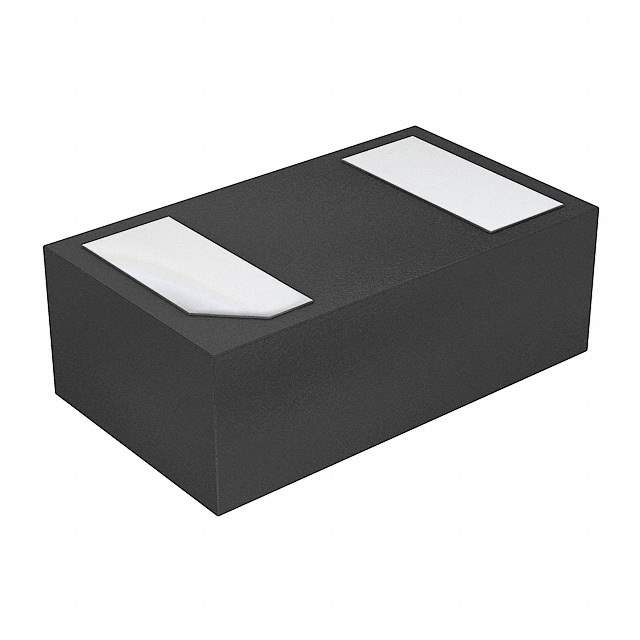

SP0402B-ELC-01ETG Real Image
Same model may have multiple batches, images only for reference.

SP0402B-ELC-01ETG

Part No SP0402B-ELC-01ETG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 7VWM 14VC 0402/2DFN / 14V (Typ) Clamp 2.5A (8/20µs) Ipp Tvs Diode Surface Mount 0402/2DFN (1x0.60)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Series SPA®
Package Tape & Reel (TR)
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 7V
Voltage - Breakdown (Min) 9.6V (Typ)
Voltage - Clamping (Max) @ Ipp 14V (Typ)
Current - Peak Pulse (10/1000µs) 2.5A (8/20µs)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 0.15pF @ 1MHz
Temperature Range - Operating -30°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 0402 (1006 Metric)
Supplier Device Package 0402/2DFN (1x0.60)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names F9743TR
Standard Package 10,000
Win Source Part Number 1095417-SP0402B-ELC-01ETG
Ultra Librarian 3D Model Ultra Librarian SP0402B-ELC-01ETG CAD Model

Description

The Littelfuse Inc. SP0402B-ELC-01ETG is a Zener type TVS-diode.

  • Manufacturer: Littelfuse Inc.
  • Type: Zener TVS-diode
  • Voltage Breakdown: 9.6V (Typ)
  • Voltage Clamping @ Ipp: 14V (Typ)
  • Mounting Type: SMD (SMT)
  • Package: 0402 (1006 Metric)
