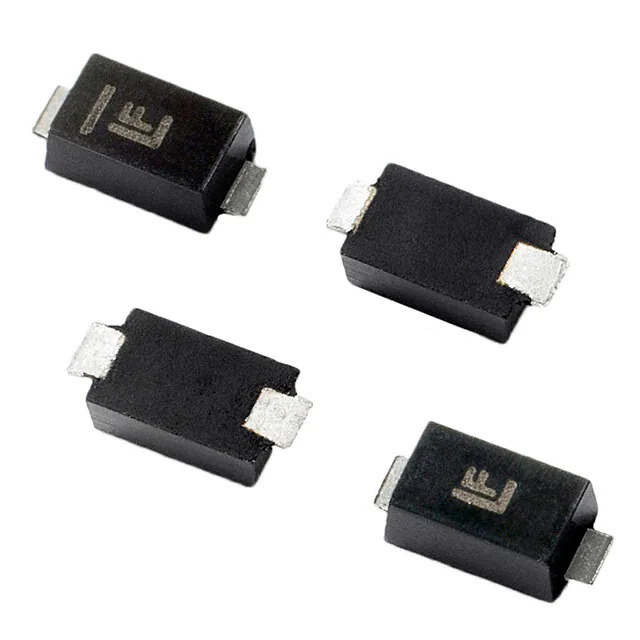

Same model may have multiple batches, images only for reference.

SMF4L24CA

Name: SMF4L24CA
Brand: Littelfuse Inc.
SKU: 1362091
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SMF4L24CA
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 24VWM 38.9VC SOD123FL / 38.9V Clamp 10.3A Ipp Tvs Diode Surface Mount SOD-123F
Datasheet	SMF4L24CA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Littelfuse Inc.
Series	SMF4L
Package	Tape & Reel
Product Status	Active
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	24V
Voltage - Breakdown (Min)	26.7V
Voltage - Clamping (Max) @ Ipp	38.9V
Current - Peak Pulse (10/1000µs)	10.3A
Power - Peak Pulse	400W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOD-123F
Supplier Device Package	SOD-123F
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1362091-SMF4L24CA
Ultra Librarian 3D Model	Ultra Librarian SMF4L24CA CAD Model

Alternative Products

Description

The SMF4L24CA is a TVS diode designed to provide transient voltage protection for electronic circuits. Manufactured by Littelfuse Inc., this diode has a reverse standoff voltage of 24V and a breakdown voltage of 26.7V.

Voltage - Reverse Standoff (Typ): 24V
Voltage - Breakdown (Min): 26.7V
Voltage - Clamping (Max) @ Ipp: 38.9V
Mounting Type: Surface Mount
Package / Case: SOD-123F
Applications: General Purpose
Operating Temperature: -55°C ~ 150°C
Power - Peak Pulse: 400W
