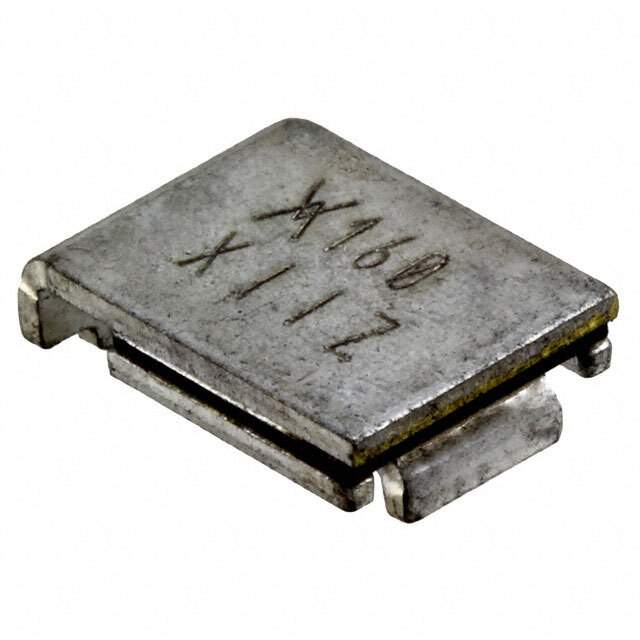

SMDH160-2 Real Image
Same model may have multiple batches, images only for reference.

SMDH160-2

Part No SMDH160-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH PTC RESET 1.6A SMD / PTC Resettable Fuse 1.6A(hold) 3.2A(trip) 16VDC 70A 2.2W 15s 0.05Ohm SMD Solder Pad 9.4 X 6.71 X 3mm T/R Automotive
Datasheet
SMDH160-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series PolySwitch, SMD
Packaging Reel package
Type Polymeric
Voltage - Max 16V
Current - Max 70A
Current - Hold (Ih) (Maximum) 1.6A
Current - Trip (It) 3.2A
Time to Trip 15s
Resistance - Initial (Ri) (Minimum) 50 mOhm
Resistance - Post Trip (R1) (Maximum) 150 mOhm
Operating Temperature Range -40°C ~ 125°C
Mounting SMD
Package 2-SMD
Dimension 0.343" L x 0.250" W (8.70mm x 6.36mm)
Thickness (Maximum) 0.118" (3.00mm)
Approvals CSA, TUV, UL
Win Source Part Number 794706-SMDH160-2
Popularity Medium
Supply and Demand Status Limited
Family Name SMD
Introduction Date November 09, 2015
ECCN EAR99
Country of Origin China
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian SMDH160-2 CAD Model

Description

The Littelfuse Inc. SMDH160-2 is a PolySwitch type electronic component.

  • Type: PolySwitch
  • Series: PolySwitch
  • Package: 2-SMD
  • Temperature Range: -40°C to 125°C
  • Maximum Voltage: 16V
  • Maximum Current: 70A
  • Current Trip: 3.2A
  • Time to Trip: 15s
  • Current Hold: 1.6A
  • Resistance Initial: 50 mOhm
  • Resistance Post Trip: 150 mOhm
  • Packaging: Reel
  • Mounting: SMD
  • Estimated EOL Date: 2029
  • Popularity: Medium
