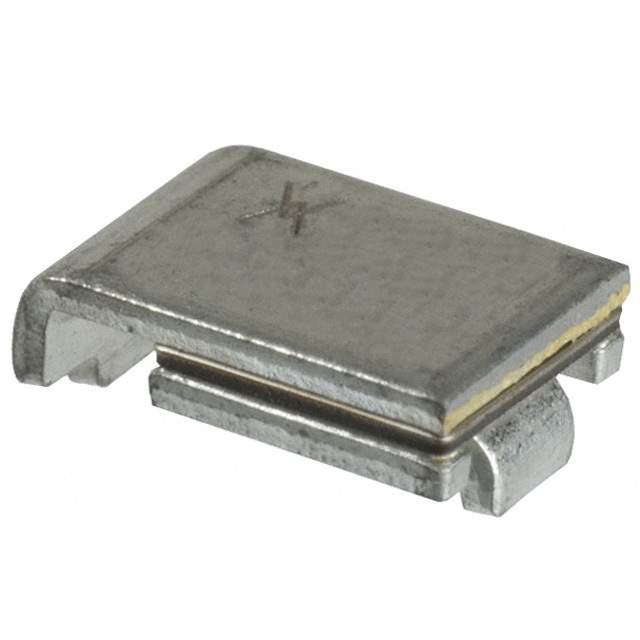

SMD200F/24-2920-2

Part No SMD200F/24-2920-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 24V 2A 2SMD / Polymeric PTC Resettable Fuse 24V 2 A Ih Surface Mount 2-SMD
Datasheet
SMD200F/24-2920-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Littelfuse Inc.
Series PolySwitch®, SMD
Package Tape & Reel
Type Polymeric
Voltage - Max 24V
Current - Max 40 A
Current - Hold (Ih) (Max) 2 A
Current - Trip (It) 4 A
Time to Trip 5 s
Resistance - Initial (Ri) (Min) 50 mOhms
Resistance - Post Trip (R1) (Max) 125 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 2-SMD
Dimension 0.290" L x 0.202" W (7.36mm x 5.12mm)
Thickness (Max) 0.118" (3.00mm)
Approval Agency CSA, TUV, UL
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8533.40.8070
Other Names SMD200F/24-2920-2-ND,SMD200F/24-2920-2CT,RF2286-000,SMD200F/24-2920-2TR,SMD200F/24-2920-2DKR
Standard Package 2,000
Win Source Part Number 995994-SMD200F/24-2920-2
Ultra Librarian 3D Model Ultra Librarian SMD200F/24-2920-2 CAD Model

Description

The SMD200F/24-2920-2 is a polymeric PTC resettable fuse from the PolySwitch series of circuit protection devices. It is mounted using surface-mount technology (SMT) and comes in tape and reel packaging with a standard package of 2,000.

  • Type: Polymeric PTC Resettable Fuse
  • Series: PolySwitch
  • Mounting Type: Surface Mount Technology (SMT)
  • Packaging: Tape and Reel
  • Standard Package: 2,000
  • Maximum Voltage: 24V
  • Maximum Current: 40A
  • Hold Current: 2A
  • Trip Current: 4A
  • Time to Trip: 5 seconds
  • Initial Resistance: 50 mOhms
  • Post Trip Resistance: 125 mOhms
  • Package/Case Size: 2-SMD
  • Temperature Range: -40°C to 85°C
  • Manufacturer: Littelfuse Inc.
  • Other Names: SMD200F/24-2920-2-ND, SMD200F/24-2920-2CT, RF2286-000, SMD200F/24-2920-2TR, and SMD200F/24-2920-2DKR
