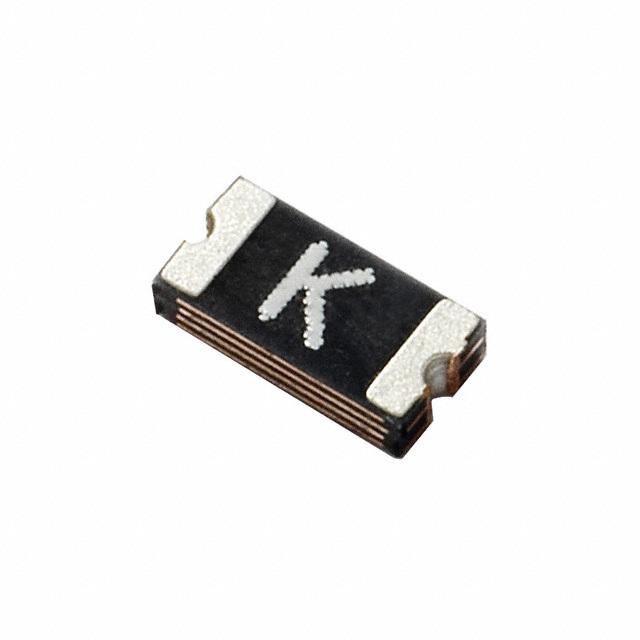

The SMD1206R020SF is a PolySwitch resettable fuse from Littelfuse Inc., designed for overcurrent protection in electronic circuits. This surface mount device is compact, making it suitable for applications where board space is limited. The resettable functionality ensures that the circuit can resume operation automatically after the fault condition is removed, without the need for manual intervention.

Applications

• Battery Packs: Protecting lithium-ion battery packs from overcurrent and short-circuit conditions.
• Wireless Communication Devices: Safeguarding RF circuits and power supplies in wireless devices.
• Set-Top Boxes: Overcurrent protection for various components within set-top boxes.
• Security Cameras: Ensuring reliable operation of security camera systems.
• Power Banks: Protecting power bank circuits from overloads and short circuits.

Features

• Surface Mount Device: Enables efficient PCB assembly and reduces manufacturing costs.
• 1206 Package Size: Compact footprint for space-constrained applications.
• Resettable Fuse: Automatically returns to a conductive state after an overcurrent event is cleared.
• Low Resistance: Minimizes voltage drop during normal operation, improving circuit efficiency.
• Fast Trip Time: Quickly interrupts the circuit during an overcurrent condition.
• RoHS Compliant: Meets environmental standards for hazardous substance restriction.

Benefits

• Enhanced Circuit Protection: Prevents damage to sensitive electronic components.
• Reduced Maintenance: Eliminates the need to replace blown fuses, saving time and money.
• Improved Reliability: Increases the overall reliability of electronic devices.
• Lower Operating Costs: Reduces the total cost of ownership for electronic equipment.
• Space Saving: Compact size allows for more efficient use of PCB space.

Additional Details

The SMD1206R020SF has a hold current (Ih) of 0.2 A and a trip current (It) of 0.4 A. It is rated for a maximum voltage of 30 VDC and a maximum interrupt current of 40 A. The operating temperature range is from -40°C to +85°C. The PolySwitch device uses a polymeric positive temperature coefficient (PPTC) material that increases its resistance dramatically when exposed to excessive current. This limits the current flow, protecting the circuit. Once the overcurrent condition is resolved and the device cools down, the PPTC material returns to its low resistance state, allowing the circuit to resume normal operation.
