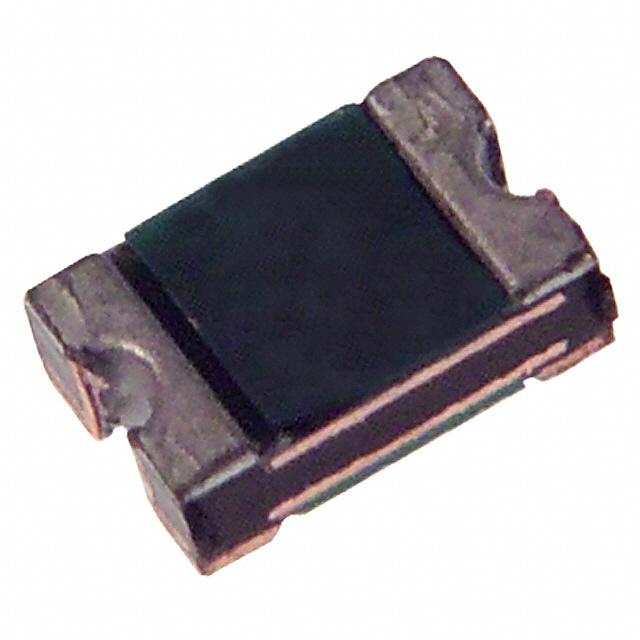

SMD0805P020TFA Littelfuse Inc.
Same model may have multiple batches, images only for reference.

SMD0805P020TFA

Part No SMD0805P020TFA
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description FUSE RESETTABLE 9V 200MA 0805
Datasheet
SMD0805P020TFA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Polymeric
Voltage - Max 9V
Current - Max 40A
Current - Hold (Ih) (Max) 200mA
Current - Trip (It) 500mA
Time to Trip 20ms
Resistance - Initial (Ri) (Min) 650 mOhm
Resistance - Post Trip (R1) (Max) 3.5 Ohm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.083" L x 0.053" W (2.10mm x 1.35mm)
Thickness (Max) 0.039" (1.00mm)
Approvals cURus, TUV
Win Source Part Number 190780-SMD0805P020TFA
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SMD0805P020TFA CAD Model

Description

The Littelfuse Inc. SMD0805P020TFA is a polymeric type circuit protection device that has cURus and TUV approvals.

  • Mounting: It is mounted on an SMD (SMT)
  • Thickness (Max): 0.039" (1.00mm)
  • Voltage - max: 9V
  • Current - max: 40A
  • Current - hold (Ih) (Max): 200mA
  • Current - trip (It): 500mA
  • Time to trip: 20ms
  • Resistance - initial (Ri) (Min): 650 mOhm
  • Resistance - post trip (R1) (Max): 3.5 Ohm
  • Resistance - 25°C (Typ): -
  • Supply and Demand Status: The supply and demand status of this device is balanced.
