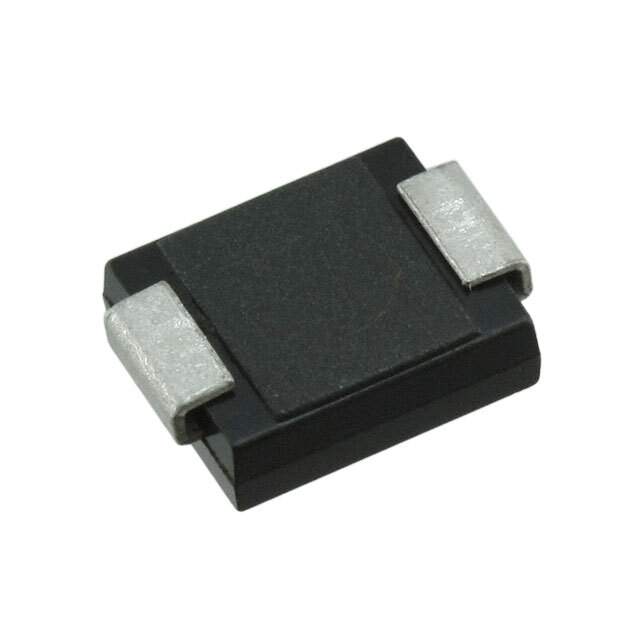

The SMCJ18CA is a Transient Voltage Suppressor (TVS) diode manufactured by Littelfuse. It's designed to protect sensitive electronic components from voltage transients induced by lightning, electrostatic discharge (ESD), inductive switching, and other transient voltage events.

Applications:

• Protection of I/O interfaces in electronic devices.
• Surge protection in communication and signal lines.
• Protecting sensitive components in automotive electronics.
• Transient voltage suppression in industrial control systems.
• Protection of power supplies against overvoltage.

Features:

• Bidirectional TVS diode.
• Surface mount package (SMC/DO-214AB).
• Low profile.
• Fast response time.
• Excellent clamping capability.

Benefits:

• Protects sensitive electronic components from damage caused by voltage transients.
• Improves overall system reliability.
• Reduces downtime and maintenance costs due to component failure.
• Enhances product safety by preventing electrical overstress.
• Compliance with industry standards for surge protection.

Additional Details:

The SMCJ18CA has a standoff voltage of 18V and a peak pulse power dissipation of 1500W. The 'CA' designation indicates that it is a bidirectional TVS diode, meaning it can protect against both positive and negative voltage transients. It features a low clamping voltage to minimize stress on the protected components. It is RoHS compliant and suitable for automated assembly. Specific electrical characteristics, such as clamping voltage, reverse leakage current, and operating temperature range, can be found in the Littelfuse datasheet for this component. TVS diodes are a cost-effective solution for enhancing the robustness of electronic designs against transient voltage threats.
