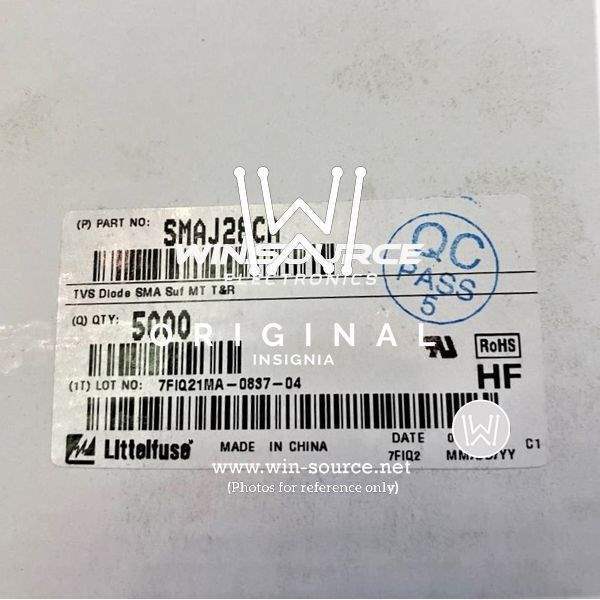

Same model may have multiple batches, images only for reference.

SMAJ28CA

Name: SMAJ28CA
Brand: Littelfuse Inc.
SKU: 327583
Availability: InStock
Rating: 4.85 (97 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SMAJ28CA
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 28VWM 45.4VC SMA
Datasheet	SMAJ28CA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Littelfuse Inc.
Packaging	Reel - TR
Status	Active
Type	Zener
Bidirectional Channels	1
STAND-OFF Voltage (Vwm)	28V
Minimum Breakdown Voltage	31.1V
Max Clamping Voltage	45.4V
Peak Pulse Current(Ippm)	8.8A
Power Dissipation - Pd	400W
Applications	General Purpose
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	DO-214AC (SMA)
Win Source Part Number	064787-SMAJ28CA
Popularity	Medium
Supply and Demand Status	Limited
Application Field	Used in Automotive, Computers & Computer Peripherals, Communications & Networking, Consumer Electronics, Lighting, Sensing & Instrumentation, Industrial
Package	Tape & Reel (TR);Cut Tape (CT)
Product Status	Active
Voltage - Reverse Standoff (Typ)	28V
Voltage - Breakdown (Min)	31.1V
Voltage - Clamping (Max) @ Ipp	45.4V
Current - Peak Pulse (10/1000µs)	8.8A
Power - Peak Pulse	400W
Power Line Protection	No
Operating Temperature	-65°C ~ 150°C (TJ)
Grade	-
Mounting Type	Surface Mount
Package / Case	DO-214AC, SMA
Supplier Device Package	DO-214AC (SMA)
Ultra Librarian 3D Model	Ultra Librarian SMAJ28CA CAD Model

Alternative Products

Description

The Littelfuse Inc. SMAJ28CA electronic component is a zener type SMD designed for general-purpose applications.

Channel: Bidirectional
Stand-off Voltage (Vwm): 28V
Minimum Breakdown Voltage: 31.1V
Maximum Clamping Voltage: 45.4V
Peak Pulse Current (Ippm): 8.8A
Status: Active
Supply and Demand: Limited
