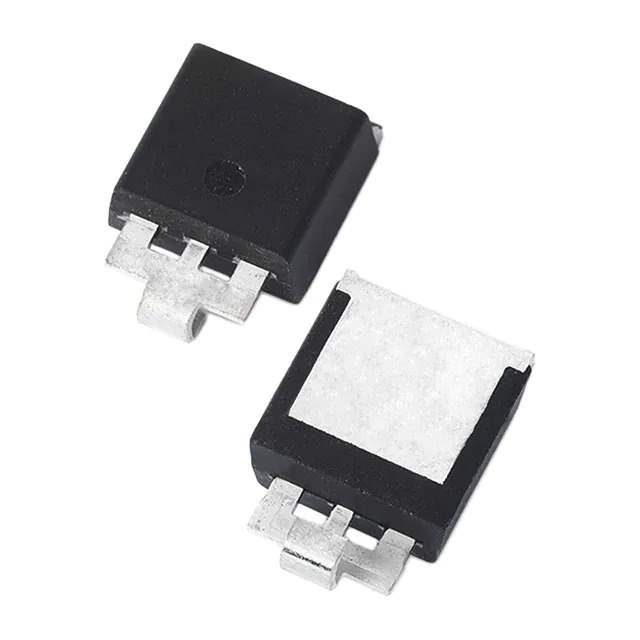

Same model may have multiple batches, images only for reference.

SLD8S30A

Name: SLD8S30A
Brand: Littelfuse Inc.
SKU: 845077
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SLD8S30A
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 30VWM 48.4VC SMTO-263
Datasheet	SLD8S30A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Littelfuse Inc.
Series	Automotive, AEC-Q101, SLD8S
Package	Tape & Reel
Product Status	Active
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	30V
Voltage - Breakdown (Min)	33.3V
Voltage - Clamping (Max) @ Ipp	48.4V
Current - Peak Pulse (10/1000µs)	144A
Power - Peak Pulse	7000W (7kW)
Power Line Protection	No
Applications	Automotive
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	Nonstandard SMD
Supplier Device Package	SMTO-263
Base Product Number	SLD8S
Standard Package	500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
California Prop 65	Warning Information
Win Source Part Number	845077-SLD8S30A
Ultra Librarian 3D Model	Ultra Librarian SLD8S30A CAD Model

Alternative Products

Description

The SLD8S30A is a Zener type TVS diode designed for automotive applications from Littelfuse Inc.

Series: SLD8S
AEC-Q101 Qualified: Yes
Package: Nonstandard Surface Mount (SMTO-263)
Reverse Standoff Voltage: 30V
Breakdown Voltage (Min): 33.3V
Clamping Voltage @ Peak Pulse Current (Ipp): 48.4V
Power Peak Pulse: 7000W (7kW)
Channel: Unidirectional
Standard Package: 500 pcs
Temperature Range: -55°C to 175°C
