The SG300Q is a Surge Guard device manufactured by Littelfuse, designed to protect sensitive electronic equipment from transient voltage surges. These surges can originate from various sources, including lightning strikes, inductive load switching, and electrostatic discharge (ESD). The SG300Q provides robust protection by clamping the voltage to a safe level, preventing damage to downstream components.

Applications

• Telecom Equipment: Protection of telephone lines and networking devices from lightning and ESD.
• Industrial Control Systems: Safeguarding programmable logic controllers (PLCs) and other sensitive control equipment.
• Medical Devices: Ensuring reliable operation of critical medical electronics by protecting against voltage surges.
• Consumer Electronics: Protecting televisions, computers, and other home appliances.
• Security Systems: Providing surge protection for alarm systems and surveillance equipment.

Features

• Low Clamping Voltage: Provides effective voltage limiting to protect sensitive circuits.
• High Surge Current Capability: Withstands high surge currents without degradation.
• Fast Response Time: Reacts quickly to transient voltage events.
• Bidirectional Protection: Offers protection against both positive and negative surges.
• Small Package Size: Allows for easy integration into compact electronic designs.
• RoHS Compliant: Meets environmental regulations for hazardous substances.

Benefits

• Enhanced Equipment Reliability: Prevents damage from voltage surges, extending the lifespan of electronic devices.
• Reduced Downtime: Minimizes disruptions caused by surge-related failures.
• Cost Savings: Avoids the expense of repairing or replacing damaged equipment.
• Improved Safety: Protects users from potential hazards associated with surge events.
• Easy Integration: Simple to incorporate into existing circuit designs.

Additional Details

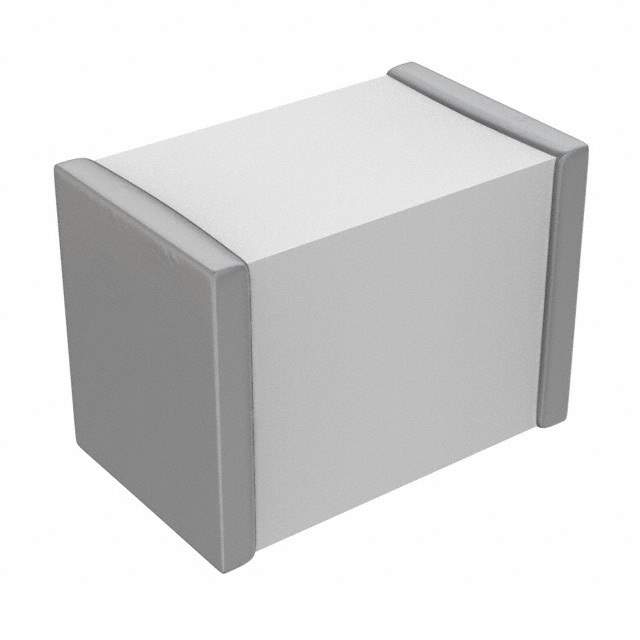

The SG300Q typically comes in a small surface-mount package. It is designed to handle multiple surge events and provides reliable protection over a wide operating temperature range. The specific clamping voltage and surge current ratings can be found in the Littelfuse datasheet. The bidirectional protection capability makes it suitable for applications where surge polarity may vary. This device is a crucial component in ensuring the reliable operation of electronic equipment in environments prone to voltage surges. Proper application and installation, according to the manufacturer's specifications, are essential to achieve optimal performance and protection.
