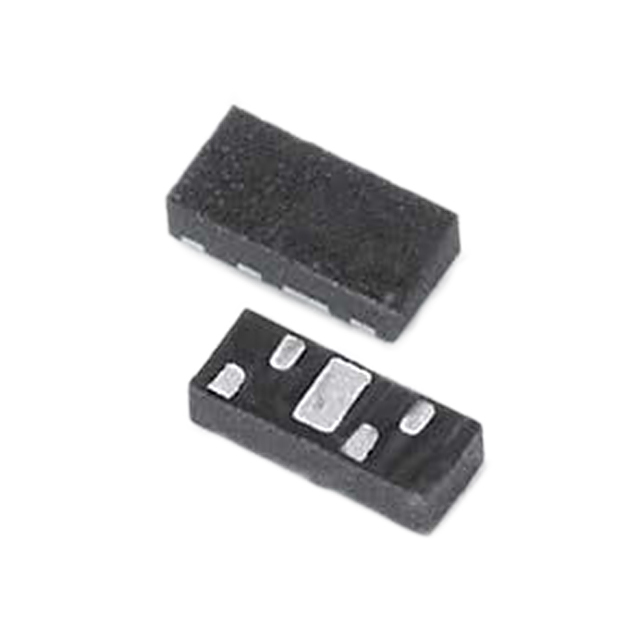

SESD0802Q4UG-0020-090

Name: SESD0802Q4UG-0020-090
Brand: Littelfuse Inc.
SKU: 511921
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SESD0802Q4UG-0020-090
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 7VWM 9.2VC DFN
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Littelfuse Inc.
Packaging	Reel - TR
Status	Active
Type	Zener
Unidirectional Channels	4
STAND-OFF Voltage (Vwm)	7V (Max)
Minimum Breakdown Voltage	9V (Typ)
Max Clamping Voltage	9.2V (Typ)
Peak Pulse Current(Ippm)	2A (8/20μs)
Applications	Automotive, HDMI
Capacitance @ Frequency	0.2pF @ 3GHz
Temperature Range - Operating	-55°C to 125°C (TJ)
Mounting	SMD (SMT)
Case / Package	0802
Win Source Part Number	1095190-SESD0802Q4UG-0020-090
Popularity	Medium
Supply and Demand Status	Limited
Application Field	Used in Consumer Electronics, Portable Devices
Ultra Librarian 3D Model	Ultra Librarian SESD0802Q4UG-0020-090 CAD Model

Alternative Products

Description

The Littelfuse Inc. SESD0802Q4UG-0020-090 is a zener-type circuit protection IC with 4 unidirectional channels.

Type: Zener
Channels: 4 Unidirectional
Applications: Automotive and HDMI
Operating Temperature Range: -55°C to 125°C
Stand-Off Voltage: 7V (max)
Breakdown Voltage: 9V (typ)
Clamping Voltage: 9.2V (typ)
Package: 0802
Peak Pulse Current: 2A (8/20μs)
Applications: Consumer Electronics and Portable Devices
