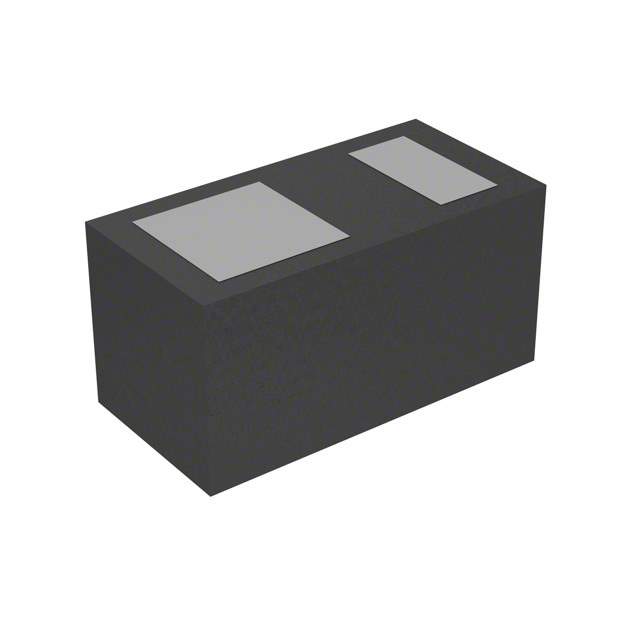

SESD0201X1BN-0015-096 Real Image
Same model may have multiple batches, images only for reference.

SESD0201X1BN-0015-096

Part No SESD0201X1BN-0015-096
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 7VWM 14VC DFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 7V (Max)
Minimum Breakdown Voltage 9.6V (Typ)
Max Clamping Voltage 14V (Typ)
Peak Pulse Current(Ippm) 2.5A (8/20μs)
Applications Automotive, HDMI
Capacitance @ Frequency 0.15pF @ 3GHz
Temperature Range - Operating -55°C to 125°C (TA)
Mounting SMD (SMT)
Case / Package 2-XDFN (0.30x0.60)
Win Source Part Number 1095185-SESD0201X1BN-0015-096
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SESD0201X1BN-0015-096 CAD Model

Description

The Littelfuse SESD0201X1BN-0015-096 is a zener diode used in circuit protection for automotive and HDMI applications.

  • Application: Circuit protection, automotive, HDMI
  • Mounting: SMD (SMT)
  • Channel: Bidirectional, 1
  • Capacitance @ Frequency: 0.15pF @ 3GHz
  • STAND-OFF Voltage (Vwm): 7V (Max)
  • Minimum Breakdown Voltage: 9.6V (Typ)
  • Max Clamping Voltage: 14V (Typ)
  • Peak Pulse Current (Ippm): 2.5A (8/20μs)
  • Temperature Range: -55°C to 125°C (TA)
  • Package: 2-XDFN (0.30x0.60)
  • Supply and Demand Status: Balanced
