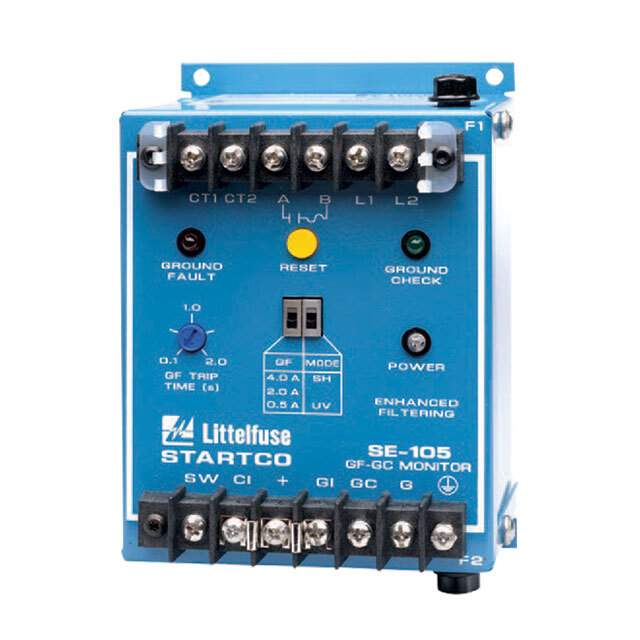

SE-105 Real Image
Same model may have multiple batches, images only for reference.

SE-105

Part No SE-105
Manufacturer Littelfuse Inc.
Catalog Protection Relays & Systems
Description GROUND FAULT MONITOR /
Datasheet
SE-105 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Industrial Automation and Controls>Protection Relays & Systems
Mfr Littelfuse Inc.
Series SE-105
Package Bulk
Function Ground Fault
Voltage - Supply 120VAC
Trip Range 0.5 ~ 5A
Delay Time 0.1 ~ 1s
Mounting Type Chassis Mount
Termination Style Screw Terminal
Features Automatic Reset, Manual Reset
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.30.8000
Other Names -SE-105,SE-105-ND,F10436
Standard Package 1
Win Source Part Number 1092202-SE-105
Ultra Librarian 3D Model Ultra Librarian SE-105 CAD Model

Description

The SE-105 ground fault protection relay is an industrial automation and control product designed to automatically or manually reset when an electrical fault occurs.

  • Terminal: Screw terminal
  • Trip Range: 0.5 to 5A
  • Mounting: Chassis
  • Voltage Supply: 120VAC
  • Delay Time: 0.1 to 1s
  • Alternative part: SE-105SE105
  • Manufacturer: Littelfuse Inc.
  • Weight: Approximately 0.05 lbs
  • Temperature Range: Not specified
