Same model may have multiple batches, images only for reference.

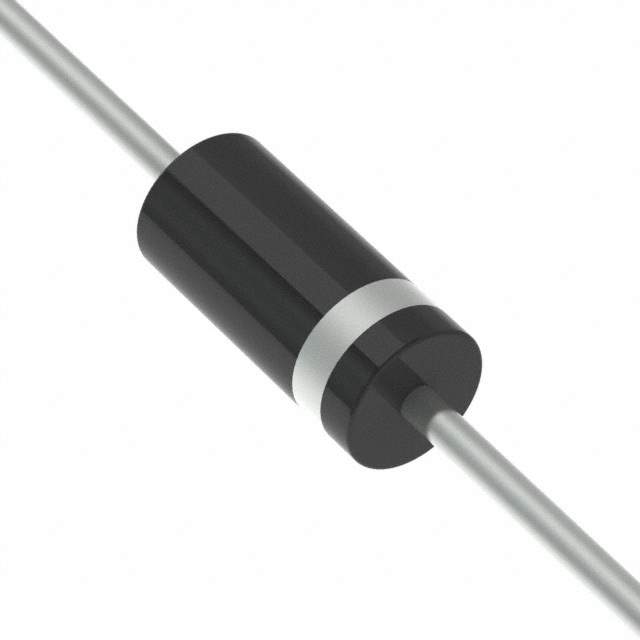

SA7.0A Real Image
Same model may have multiple batches, images only for reference.

SA7.0A

Part No SA7.0A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 7VWM 12VC AXIAL
Datasheet
SA7.0A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 7V
Minimum Breakdown Voltage 7.78V
Max Clamping Voltage 12V
Peak Pulse Current(Ippm) 41.7A
Power Dissipation - Pd 500W
Applications General Purpose
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package Axial
Win Source Part Number 046718-SA7.0A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SA7.0A CAD Model

Description

This Littelfuse Inc. axial Zener diode is designed to protect electronic circuits from voltage surges.

  • Stand-off Voltage: 7V
  • Minimum Breakdown Voltage: 7.78V
  • Channel: unidirectional
  • Peak Pulse Current: 41.7A
  • Power Dissipation: 500W
  • Temperature Range: -55°C to 150°C
  • Mounting: through hole
  • Packaging: reel - TR
