Same model may have multiple batches, images only for reference.

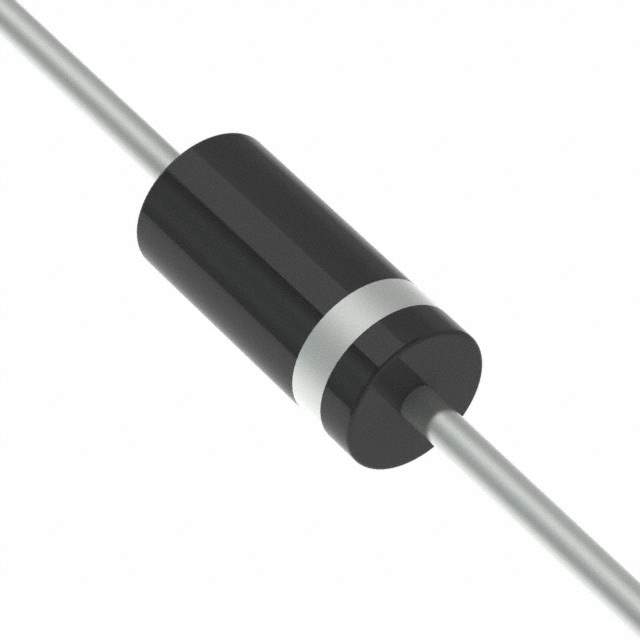

SA36A Real Image
Same model may have multiple batches, images only for reference.

SA36A

Part No SA36A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 36VWM 58.1VC DO204AC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Standard Package 1
Category Circuit Protection
Family TVS - Diodes
Series SA
Packaging Reel
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 36V
Voltage - Breakdown (Min) 40V
Voltage - Clamping (Max) @ Ipp 58.1V
Current - Peak Pulse (10/1000µs) 8.8A
Power - Peak Pulse 500W
Power Line Protection No
Applications General Purpose
Operating Temperature Range -55°C ~ 175°C (TJ)
Mounting Style Through Hole
Package DO-204AC DO-15 Axial
Manufacturer Device Package DO-204AC (DO-15)
Catalog SA Series
Win Source Part Number 042510-SA36A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SA36A CAD Model

Description

The Littelfuse Inc. SA36A is a TVS - Diode with a Zener type and a unidirectional channel of 1.

  • Voltage - Reverse Standoff (Typ): 36V
  • Voltage - Breakdown (Min): 40V
  • Voltage - Clamping (Max) @ Ipp: 58.1V
  • Power - Peak Pulse: 500W
  • Current - Peak Pulse (10/1000µs): 8.8A
  • Package: DO-204AC DO-15 Axial
  • Manufacturer Device Package: DO-204AC (DO-15)
  • Mounting Type: through-hole mounted
  • Operating Temperature Range: -55°C ~ 175°C (TJ)
  • Series: SA series
  • Standard Package: 1
  • Supply and Demand Status: balance
