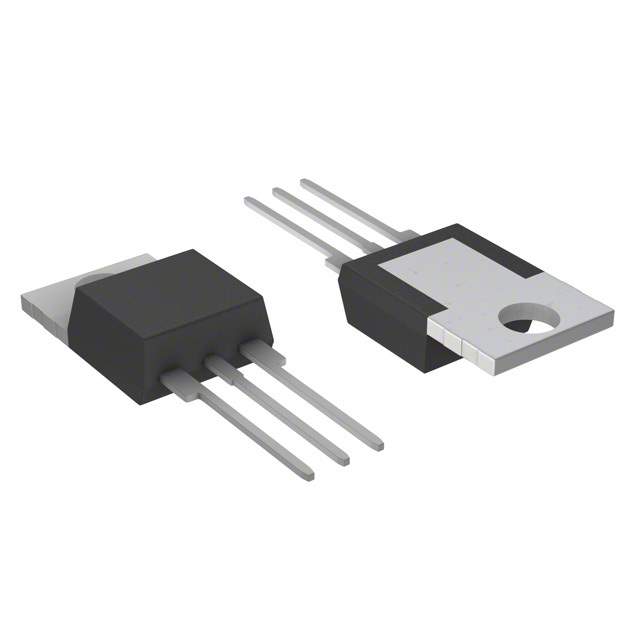

S8015L56 Real Image
Same model may have multiple batches, images only for reference.

S8015L56

Part No S8015L56
Manufacturer Littelfuse Inc.
Catalog SCRs - Single
Datasheet
S8015L56 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Thyristors - SCRs
Mfr Littelfuse Inc.
Package Bulk
Voltage - Off State 800 V
Voltage - Gate Trigger (Vgt) (Max) 1.5 V
Current - Gate Trigger (Igt) (Max) 30 mA
Voltage - On State (Vtm) (Max) 1.6 V
Current - On State (It (AV)) (Max) 9.5 A
Current - On State (It (RMS)) (Max) 15 A
Current - Hold (Ih) (Max) 40 mA
Current - Off State (Max) 20 µA
Current - Non Rep. Surge 50, 60Hz (Itsm) 188A, 225A
SCR Type Standard Recovery
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Package / Case TO-220-3 Isolated Tab, Formed Leads
Supplier Device Package TO-220 Isolated Tab
Other Names -S8015L56,F6832,S8015L56
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.30.0080
Win Source Part Number 1279000-S8015L56
Ultra Librarian 3D Model Ultra Librarian S8015L56 CAD Model

Description

The 1279000-S8015L56 is a thyristor SCR designed for use in discrete semiconductor products.

  • Voltage Off State: 800 V
  • Voltage Gate Trigger: 1.5 V
  • Current Hold (Ih): 40 mA
  • Current Gate Trigger (Igt): 30 mA
  • Current On State (It (AV)): 9.5 A
  • Current On State (It (RMS)): 15 A
  • SCR Type: Standard Recovery
  • Mounting Type: Through-Hole
  • Package/Case: TO-220-3 Isolated Tab, Formed Leads
  • Supplier Device Package: TO-220 Isolated Tab
  • Temperature Range for Operating: -40°C to 125°C
