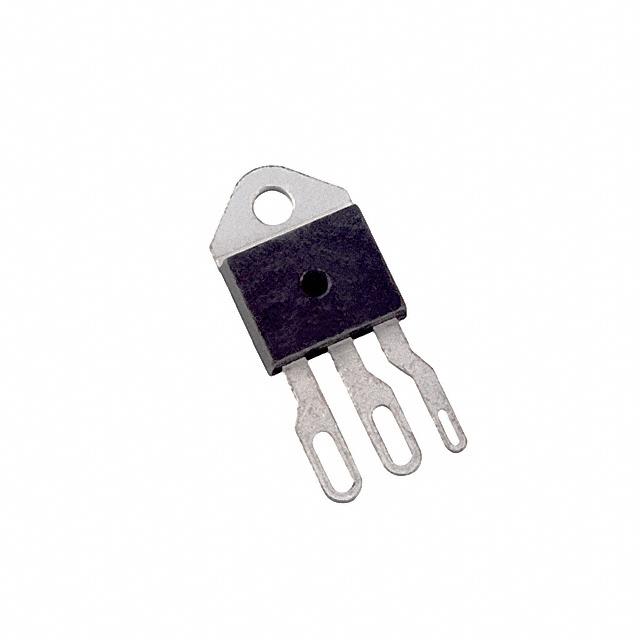

S6065JTP Littelfuse Inc.
Same model may have multiple batches, images only for reference.

S6065JTP

Part No S6065JTP
Manufacturer Littelfuse Inc.
Catalog SCRs - Single
Description NON-SENSITIVE GATE 65.0AS 600V
Datasheet
S6065JTP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Littelfuse Inc.
Packaging Tube/Rail
Status Active
Voltage - Off State 600V
Voltage - Gate Trigger (Vgt) (Max) 2V
Current - Gate Trigger (Igt) (Max) 50mA
Voltage - On State (Vtm) (Max) 1.8V
Current - On State (It (AV)) (Max) 41A
Current - On State (It (RMS)) (Max) 65A
Current - Hold (Ih) (Max) 80mA
Current - Off State (Max) 20μA
Current - Non Rep. Surge 50, 60Hz (Itsm) 800A, 950A
SCR Type Standard Recovery
Temperature Range - Operating -40°C to 125°C
Mounting Through Hole
Case / Package TO-218X Isolated
Win Source Part Number 211248-S6065JTP
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian S6065JTP CAD Model

Description

The S6065JTP is a through-hole mounted SCR (Standard Recovery) manufactured by Littelfuse Inc.

  • Mounting Type: Through-Hole
  • Package: TO-218X Isolated
  • Voltage-Off State: 600V
  • Voltage-Gate Trigger (Vgt) (Max): 2V
  • Current-Gate Trigger (Igt) (Max): 50mA
  • Current-Hold (Ih) (Max): 80mA
  • Current-Off State (Max): 20μA
  • Current-On State (It (AV)) (Max): 41A
  • Current-On State (It (RMS)) (Max): 65A
  • Current-Non-Rep. Surge 50, 60Hz (Itsm): 800A, 950A
  • Supply and Demand Status: Balanced
