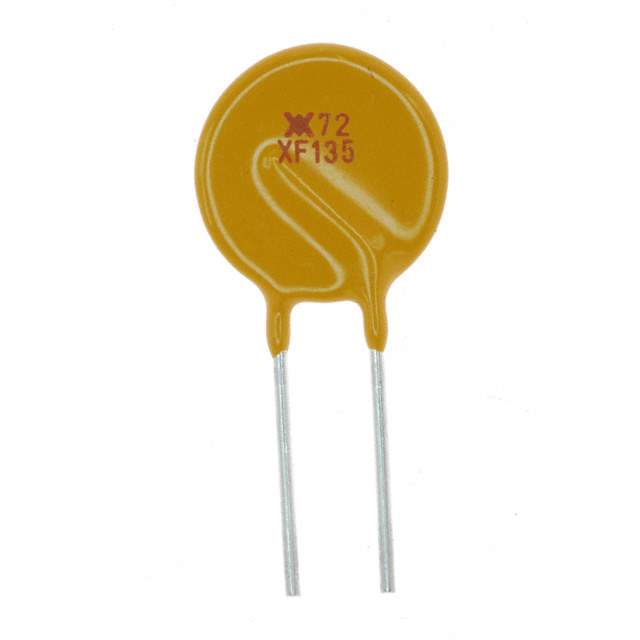

Same model may have multiple batches, images only for reference.

RXEF135-2

Name: RXEF135-2
Brand: Littelfuse Inc.
SKU: 793471
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	RXEF135-2
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	POLYSWITCH PTC RESET 1.35A / PTC Resettable Fuse 1.35A(hold) 2.7A(trip) 72V 40A 1.7W 9.6s 0.12Ohm Radial 14.5 X 3mm T/R
Datasheet	RXEF135-2 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Littelfuse Inc.
Series	PolySwitch, RXEF
Packaging	Reel package
Type	Polymeric
Voltage - Max	72V
Current - Max	40A
Current - Hold (Ih) (Maximum)	1.35A
Current - Trip (It)	2.7A
Time to Trip	9.6s
Resistance - Initial (Ri) (Minimum)	120 mOhm
Resistance - Post Trip (R1) (Maximum)	300 mOhm
Operating Temperature Range	-40°C ~ 85°C
Mounting Style	Through Hole
Package	Radial, Disc
Dimension	0.571" Dia x 0.118" W (14.50mm x 3.00mm)
Height - Seated (Maximum)	0.752" (19.10mm)
Lead Spacing	0.199" (5.05mm)
Approvals	CQC, CSA, TUV, UL
Win Source Part Number	793471-RXEF135-2
Popularity	Medium
Supply and Demand Status	Limited
Family Name	RXEF
Introduction Date	November 09, 2015
ECCN	EAR99
Country of Origin	China
Estimated EOL Date	2029
Ultra Librarian 3D Model	Ultra Librarian RXEF135-2 CAD Model

Alternative Products

Description

The Littelfuse Inc. RXEF135-2 is a highly reliable and efficient electronic component.

Supply and Demand Status: Limited
Manufacturer: Littelfuse Inc.
Win Source Part Number: 793471-RXEF135-2
Series: PolySwitch, RXEF
Package Type: Reel
Mounting: Through-hole
Operating Temperature Range: -40°C ~ 85°C
Approvals: CQC, CSA, TUV, UL
Lead Spacing: 0.199" (5.05mm)
Voltage-Max: 72V
Current-Max: 40A
Current-Trip: 2.7A
Time to Trip: 9.6s
Current-Hold (Ih) (maximum): 1.35A
Height-Seated (maximum): 0.752" (19.10mm)
Dimension: 0.571" Dia x 0.118" W (14.50mm x 3.00mm)
Resistance-Initial (Ri) (minimum): 120 mOhm
Resistance-Post Trip (R1) (maximum): 300 mOhm
Introduction Date: November 09, 2015
Estimated EOL Date: 2029
ECCN: EAR99
Country of Origin: China
