Same model may have multiple batches, images only for reference.

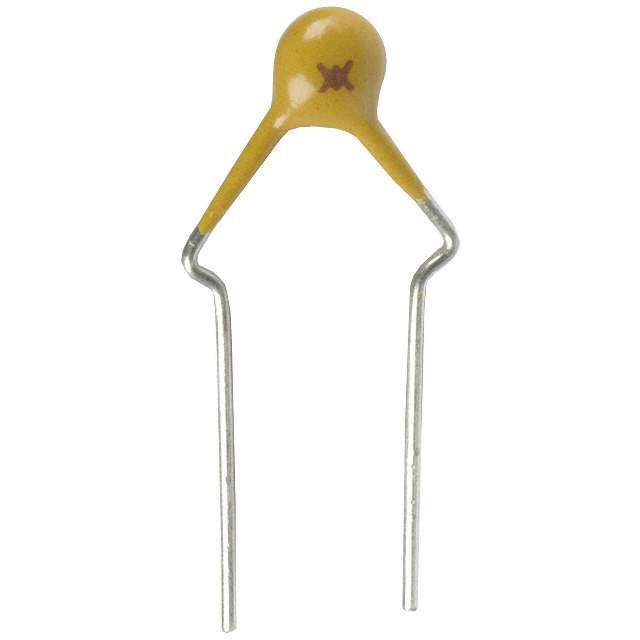

RXEF005-2 Real Image
Same model may have multiple batches, images only for reference.

RXEF005-2

Part No RXEF005-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH PTC RESET 0.05A
Datasheet
RXEF005-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 60V
Current - Max 40A
Current - Hold (Ih) (Max) 50mA
Current - Trip (It) 100mA
Time to Trip 5s
Resistance - Initial (Ri) (Min) 7.3 Ohm
Resistance - Post Trip (R1) (Max) 20 Ohm
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Dimension 0.315" Dia x 0.120" W (8.00mm x 3.00mm)
Height - Seated (Max) 0.327" (8.30mm)
Lead Spacing 0.199" (5.05mm)
Approvals CQC, CSA, TUV, UL
Win Source Part Number 1093130-RXEF005-2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RXEF005-2 CAD Model

Description

This Littelfuse Inc. RXEF005-2 product is a reliable and high-quality polymeric fuse manufactured by Littelfuse Inc.

  • Mounting: Through-hole
  • Maximum Voltage: 60V
  • Maximum Current: 40A
  • Resistance: 7.3 Ohm
  • Post-Trip Resistance: 20 Ohm
  • Approvals: CQC, CSA, TUV, and UL
  • Operating Temperature Range: -40°C to 85°C
