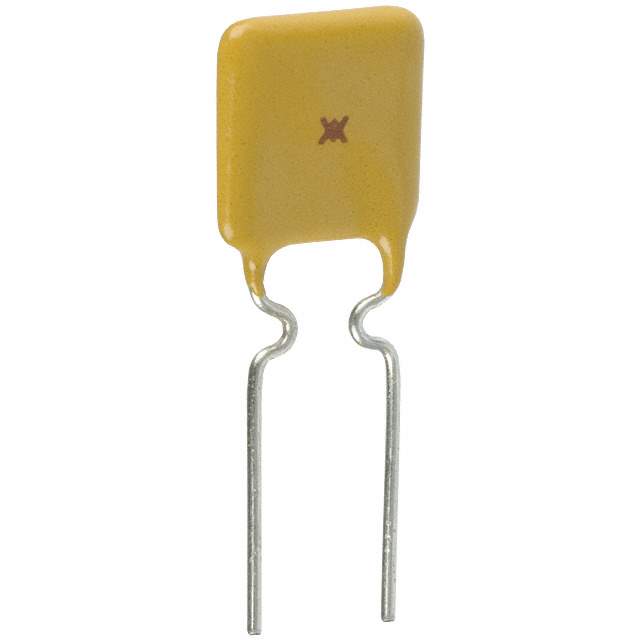

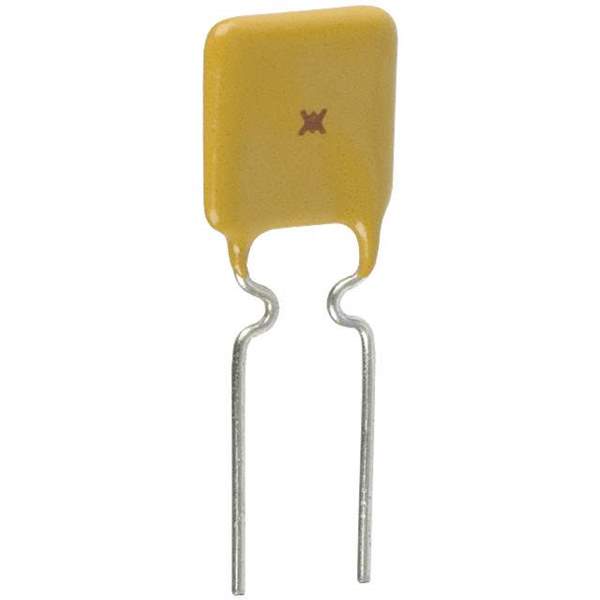

RUSBF135-2 Real Image
Same model may have multiple batches, images only for reference.

RUSBF135-2

Part No RUSBF135-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description FUSE USB RESETTABLE 1.35A HOLD / PTC Resettable Fuse 1.35A(hold) 2.7A(trip) 16VDC 40A 0.8W 4.5s 0.04Ohm Radial 8.9 X 3 X 13.5mm T/R
Datasheet
RUSBF135-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series PolySwitch, RUSBF
Packaging Reel package
Type Polymeric
Voltage - Max 16V
Current - Max 40A
Current - Hold (Ih) (Maximum) 1.35A
Current - Trip (It) 2.7A
Time to Trip 4.5s
Resistance - Initial (Ri) (Minimum) 40 mOhm
Resistance - Post Trip (R1) (Maximum) 112 mOhm
Operating Temperature Range -40°C ~ 85°C
Mounting Style Through Hole
Package Radial, Disc
Dimension 0.350" L x 0.118" W (8.90mm x 3.00mm)
Height - Seated (Maximum) 0.532" (13.50mm)
Lead Spacing 0.199" (5.05mm)
Approvals CSA, TUV, UL
Win Source Part Number 793456-RUSBF135-2
Popularity Medium
Supply and Demand Status Limited
Introduction Date November 09, 2015
ECCN EAR99
Country of Origin China
Ultra Librarian 3D Model Ultra Librarian RUSBF135-2 CAD Model

Description

The Littelfuse Inc. PolySwitch RUSBF series is a through-hole polymeric type circuit protection device.

  • Maximum Voltage: 16V
  • Maximum Current: 40A
  • Current Trip: 2.7A
  • Time to Trip: 4.5s
  • Approvals: CSA, TUV, UL
  • Package: Radial, disc
  • Lead Spacing: 0.199" (5.05mm)
  • Initial Resistance: 40 mOhm
  • Post-Trip Resistance: 112 mOhm
  • Operating Temperature: -40°C to 85°C
