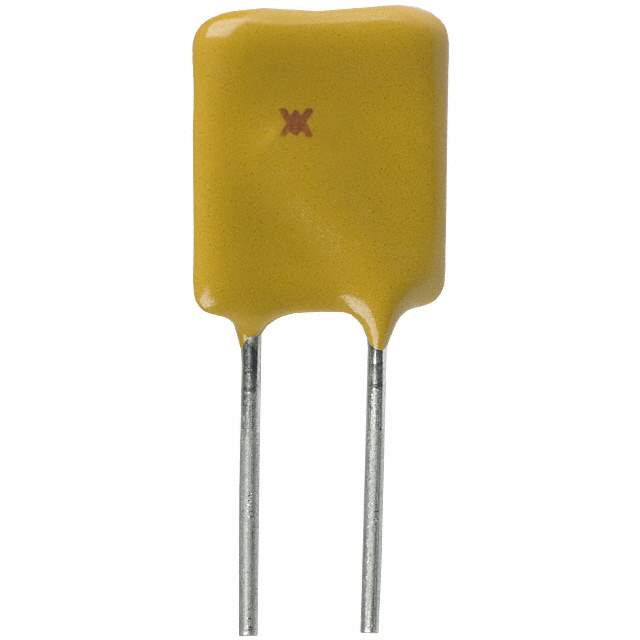

Same model may have multiple batches, images only for reference.

RUEF300-2

Name: RUEF300-2
Brand: Littelfuse Inc.
SKU: 1361639
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	RUEF300-2
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	PTC RESET FUSE 30V 3A RADIAL / Polymeric PTC Resettable Fuse 30V 3 A Ih Through Hole Radial, Disc
Datasheet	RUEF300-2 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - PTC Resettable Fuses
Mfr	Littelfuse Inc.
Series	PolySwitch®, RUEF
Package	Tape & Reel (TR)
Product Status	Active
Type	Polymeric
Voltage - Max	30V
Current - Hold (Ih) (Max)	3 A
Current - Trip (It)	6 A
Current - Max	100 A
Time to Trip	10.8 s
Resistance - Initial (Ri) (Min)	20 mOhms
Resistance - Post Trip (R1) (Max)	80 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Ratings	-
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.449" L x 0.118" W (11.40mm x 3.00mm)
Height - Seated (Max)	0.650" (16.50mm)
Thickness (Max)	-
Lead Spacing	0.199" (5.05mm)
Approval Agency	CQC, CSA, TUV, UL
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.40.8070
Win Source Part Number	1361639-RUEF300-2
Ultra Librarian 3D Model	Ultra Librarian RUEF300-2 CAD Model

Alternative Products

Description

The 1361639-RUEF300-2 is a PTC resettable fuse from Littelfuse Inc.'s PolySwitch RUEF series.

Maximum Current: 100A
Maximum Voltage: 30V
Mounting Type: Through-Hole
Package: Radial Disc
Operating Temperature: -40°C to 85°C
Trip Current: 6A
Time to Trip: 10.8 seconds
Compliance: CQC, CSA, TUV, and UL
Product Status: Active
