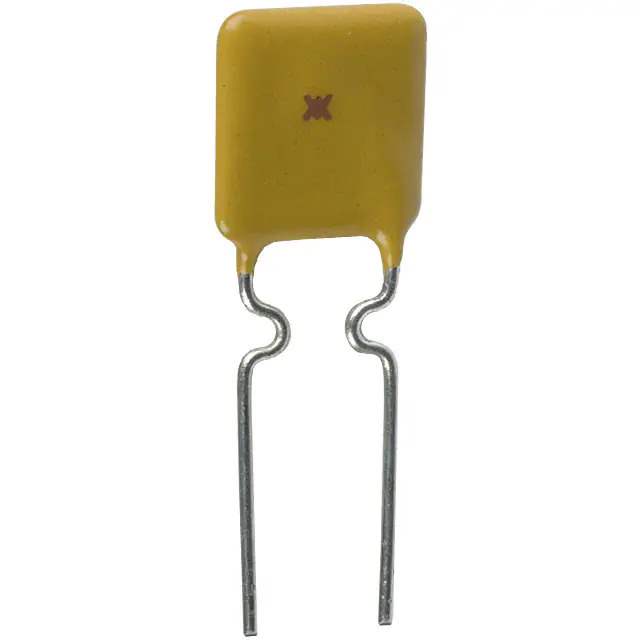

RUEF090 Real Image
Same model may have multiple batches, images only for reference.

RUEF090

Part No RUEF090
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 30V 900MA RADIAL / Polymeric PTC Resettable Fuse 30V 900 mA Ih Through Hole Radial, Disc
Datasheet
RUEF090 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr Littelfuse Inc.
Series PolySwitch®, RUEF
Package Bag
Product Status Active
Type Polymeric
Voltage - Max 30V
Current - Hold (Ih) (Max) 900 mA
Current - Trip (It) 1.8 A
Current - Max 100 A
Time to Trip 5.9 s
Resistance - Initial (Ri) (Min) 70 mOhms
Resistance - Post Trip (R1) (Max) 220 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.291" Dia x 0.118" T (7.40mm x 3.00mm)
Height - Seated (Max) 0.480" (12.20mm)
Lead Spacing 0.199" (5.05mm)
Approval Agency CQC, CSA, TUV, UL
Standard Package 500 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
California Prop 65 Warning Information
Win Source Part Number 662003-RUEF090
Ultra Librarian 3D Model Ultra Librarian RUEF090 CAD Model

Description

The RUEF090 is a PTC resettable fuse from the PolySwitch® RUEF series.

  • Type: polymeric device
  • Application: circuit protection applications
  • Maximum Voltage Rating: 30V
  • Maximum Current Rating: 100A
  • Mounting Type: through-hole
  • Resistance (initial): 70mOhms
  • Resistance (post trip): 220mOhms
  • Temperature Range: -40°C to 85°C
  • Manufacturer: Littelfuse Inc.
  • Status: active
  • Approvals: CQC, CSA, TUV, and UL
