Same model may have multiple batches, images only for reference.

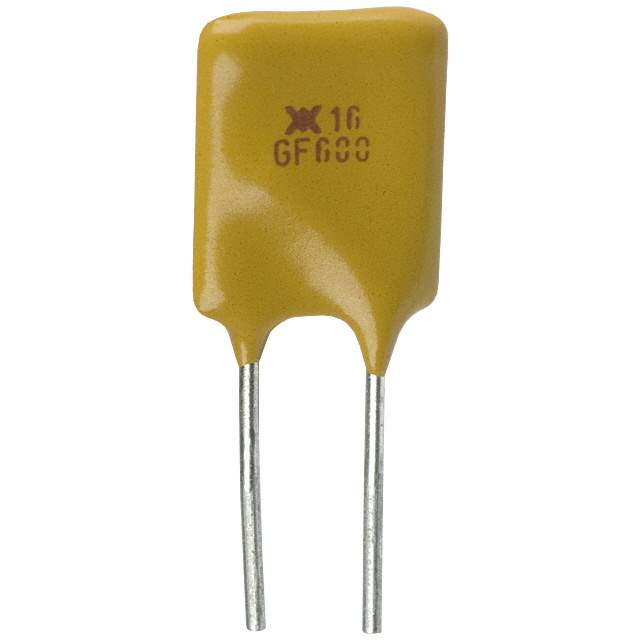

RGEF600-1 Real Image
Same model may have multiple batches, images only for reference.

RGEF600-1

Part No RGEF600-1
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH PTC RESET 6A HOLD / PTC Resettable Fuse 6A(hold) 10.2A(trip) 16V 100A 2.8W 3.3s 0.01Ohm Radial 10.7 X 3 X 17.1mm Loose
Datasheet
RGEF600-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series PolySwitch, RGEF
Packaging Bulk
Type Polymeric
Voltage - Max 16V
Current - Max 100A
Current - Hold (Ih) (Maximum) 6A
Current - Trip (It) 10.2A
Time to Trip 3.3s
Resistance - Initial (Ri) (Minimum) 10 mOhm
Resistance - Post Trip (R1) (Maximum) 28 mOhm
Operating Temperature Range -40°C ~ 85°C
Mounting Style Through Hole
Package Radial, Disc
Dimension 0.402" L x 0.098" W (10.20mm x 2.50mm)
Height - Seated (Maximum) 0.673" (17.10mm)
Lead Spacing 0.199" (5.05mm)
Approvals CSA, TUV, UL
Win Source Part Number 793170-RGEF600-1
Popularity Medium
Supply and Demand Status Limited
Introduction Date November 09, 2015
ECCN EAR99
Country of Origin China
Ultra Librarian 3D Model Ultra Librarian RGEF600-1 CAD Model

Description

This Littelfuse PolySwitch is a type of polymeric circuit protection device that is designed for through-hole mounting.

  • Maximum Voltage: 16V
  • Maximum Current: 100A
  • Current Trip: 10.2A
  • Time to Trip: 3.3s
  • Current Hold (Ih) (Maximum): 6A
  • Resistance-Initial (Ri) (minimum): 10 mOhm
  • Resistance-Post Trip (R1) (maximum): 28 mOhm
  • Dimension: 0.402 inches L x 0.098 inches W (10.20mm x 2.50mm)
  • Height-Seated (maximum): 0.673 inches (17.10mm)
  • Approvals: CSA, TUV, and UL
  • ECCN: EAR99
